Texas Instruments provides a recommended PCB layout in the application note SLVA883, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The TXS0206-29YFPR has a thermal pad that must be connected to a thermal ground plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer between the device and the heat sink. Additionally, the device should be placed in a well-ventilated area to prevent overheating.
The TXS0206-29YFPR has an operating temperature range of -40°C to 125°C, but the device can be derated for operation up to 150°C with reduced performance. It's essential to follow the recommended operating conditions to ensure reliable operation and prevent damage to the device.
To ensure signal integrity, it's essential to follow proper PCB design and layout practices, such as using controlled impedance traces, minimizing signal routing, and using signal termination resistors. Additionally, the device should be placed close to the signal source, and the signal traces should be shielded to prevent electromagnetic interference (EMI).
The TXS0206-29YFPR requires a specific power sequencing to prevent damage to the device. The recommended power sequencing is to apply the VCC power supply first, followed by the VTT power supply, and then the input signals. The power supplies should be ramped up slowly to prevent voltage overshoots.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TXS0206-29YFPR Overview

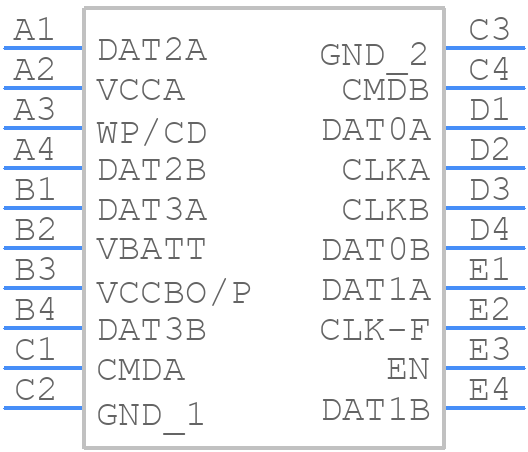

Use the download button to access the TXS0206-29YFPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TXS02,
or try a keyword search, such as Level Translators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
