A good PCB layout for the UC1543J883B involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the analog and digital grounds separate.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the power supply lines and to use a low-impedance output capacitor. If oscillations still occur, try adding a small resistor (e.g., 10 ohms) in series with the output capacitor.
The maximum output current of the UC1543J883B is not explicitly stated in the datasheet, but it's typically limited by the internal power dissipation and the thermal resistance of the package. As a general rule, the output current should be limited to 1-2 A to ensure reliable operation and to prevent overheating.
While the UC1543J883B is primarily designed as a linear regulator, it can be used in switching regulator applications with some caveats. However, it's essential to ensure that the switching frequency is not too high (typically <100 kHz) and that the output capacitor is of high quality and has low ESR. Additionally, the UC1543J883B may not be the best choice for high-current switching regulators due to its limited power dissipation capabilities.
The output voltage of the UC1543J883B can be adjusted by changing the ratio of the resistors R1 and R2 in the feedback network. The output voltage is determined by the formula Vout = Vref * (1 + R2/R1), where Vref is the internal reference voltage (typically 2.5 V). By adjusting the ratio of R1 and R2, the output voltage can be set to the desired value.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC1543J883B Overview

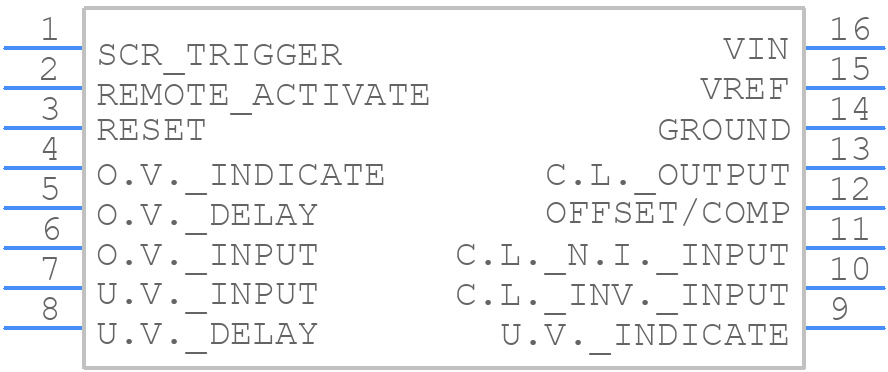

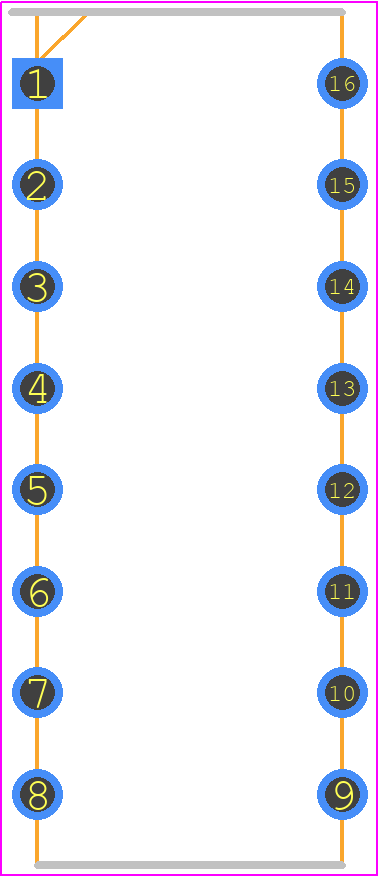

Use the download button to access the UC1543J883B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC154,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
