The UC2526ADW requires careful layout and placement to ensure proper operation. TI recommends placing the IC close to the power supply, using a solid ground plane, and keeping the input and output traces short and separate to minimize noise and EMI.
To ensure proper biasing, make sure to connect the VCC pin to a stable voltage source, and the GND pin to a solid ground plane. Also, ensure that the input voltage is within the recommended range (typically 8-35V) and that the output voltage is properly regulated.
The UC2526ADW can dissipate up to 2.5W of power, so it's essential to provide adequate heat sinking and thermal management. Ensure good airflow, use a heat sink if necessary, and avoid operating the device near its maximum temperature rating (typically 125°C).
To troubleshoot issues, start by verifying the power supply voltage, checking for proper biasing, and ensuring that the input and output voltages are within the recommended ranges. Use an oscilloscope to check for oscillations, noise, or other anomalies. Consult the datasheet and application notes for specific troubleshooting guidelines.
While the UC2526ADW is a reliable device, it's essential to evaluate its suitability for high-reliability or safety-critical applications. Consult the datasheet and relevant industry standards (e.g., IEC 61508, DO-254) to ensure the device meets the required safety and reliability standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC2526ADW Overview

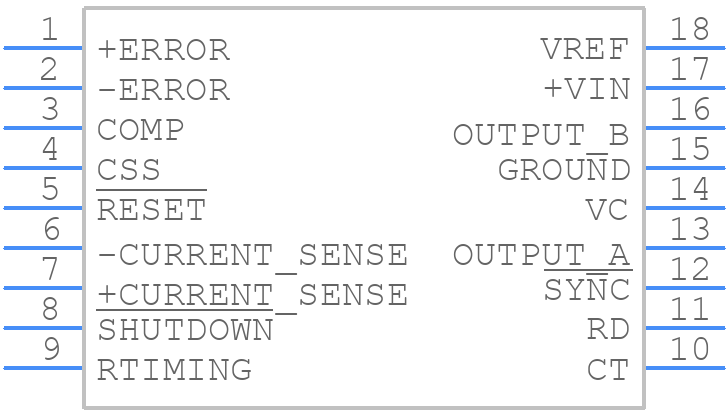

Use the download button to access the UC2526ADW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC252,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
