UC2526ADWTR - Texas Instruments

Description: Regulating Pulse Width Modulator

Download UC2526ADWTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

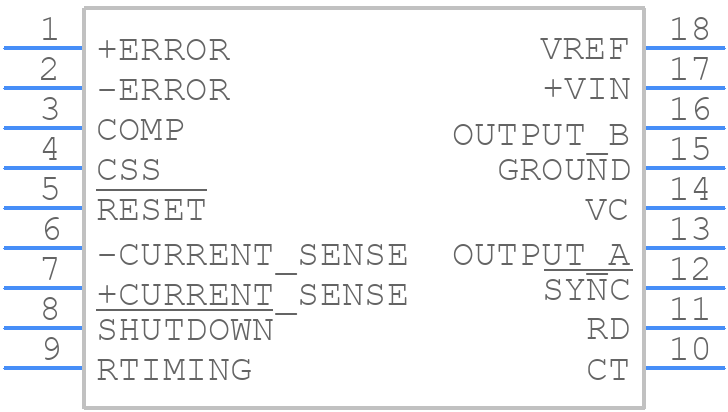

Symbol
UC2526ADWTR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UC2526ADWTR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G18)
click to zoom
3D Models
UC2526ADWTR - Texas Instruments - 3D model - Small Outline Packages - DW (R-PDSO-G18)
click to zoom

UC2526ADWTR Details

  • Manufacturer Part Number:

    UC2526ADWTR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    18

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    35 V

  • Input Voltage-Min:

    7 V

  • Input Voltage-Nom:

    15 V

  • JESD-30 Code:

    R-PDSO-G18

  • JESD-609 Code:

    e4

  • Length:

    11.55 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    0.2 A

  • Output Voltage-Max:

    5.05 V

  • Output Voltage-Min:

    4.95 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP18,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    35 V

  • Supply Voltage-Min (Vsup):

    7 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    600 kHz

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

UC2526ADWTR Frequently Asked Questions (FAQs)

  • It's essential to follow a good layout and placement strategy to minimize electromagnetic interference (EMI) and ensure proper operation. TI recommends placing the IC close to the input capacitors, using a solid ground plane, and keeping the input and output traces separate.
  • The choice of input and output capacitors depends on the specific application and operating conditions. TI recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and 22uF for the output. The capacitor selection should also consider the voltage rating, ripple current, and temperature range.
  • The UC2526ADWTR is rated for operation from -40°C to 125°C. However, the maximum ambient temperature range may vary depending on the specific application and thermal design. It's essential to ensure proper thermal management to prevent overheating and ensure reliable operation.
  • The UC2526ADWTR has a built-in overcurrent protection feature. To implement it, connect a sense resistor (Rs) between the output and the GND pin. The IC will shut down when the current exceeds the threshold set by the sense resistor value. TI recommends using a sense resistor value between 0.1Ω and 1Ω.
  • The UC2526ADWTR can operate with an input voltage range of 7V to 18V. However, the recommended input voltage range is 9V to 15V for optimal performance and efficiency.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UC2526ADWTR Overview

Use the download button to access the UC2526ADWTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC252, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
