UC2625DWG4 - Texas Instruments

Description: Motor / Motion / Ignition Controllers & Drivers Brushless DC Motor Controller

Download UC2625DWG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

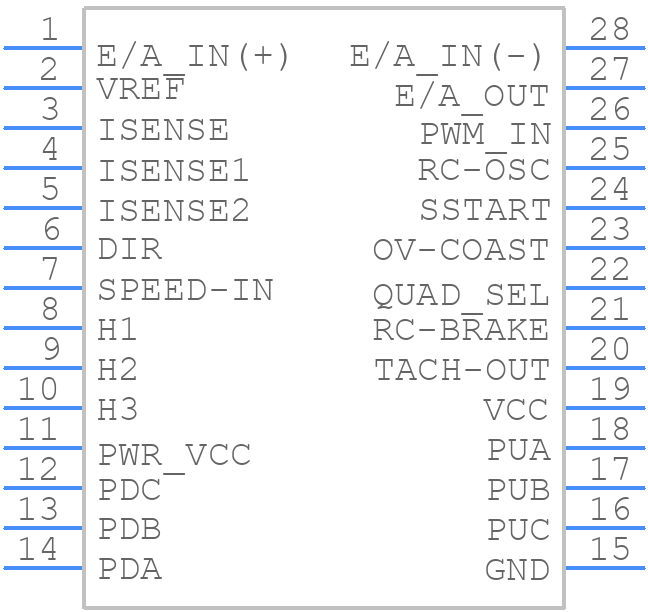

UC2625DWG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UC2625DWG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW (R-PDSO-G28)
click to zoom
3D Models
UC2625DWG4 - Texas Instruments - 3D model - Small Outline Packages - DW (R-PDSO-G28)
click to zoom

UC2625DWG4 Details

  • Manufacturer Part Number:

    UC2625DWG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    1-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    17.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max (Isup):

    30 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    10 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

UC2625DWG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note SLUA271, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and reliability.
  • The UC2625DWG4 datasheet provides guidelines for transformer selection, including the recommended turns ratio, inductance, and core material. Additionally, Texas Instruments offers a transformer selection tool on their website to help engineers choose the right transformer for their specific application.
  • The UC2625DWG4 is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal management system used. Engineers should consult the datasheet and application notes for guidance on thermal design and derating.
  • No, the UC2625DWG4 is designed for isolated topologies only. It is not suitable for non-isolated topologies, and using it in such a configuration may compromise safety and reliability.
  • The UC2625DWG4 has a built-in overcurrent protection feature, but it requires external components to implement. Engineers can use a sense resistor and a comparator to detect overcurrent conditions and trigger the shutdown pin of the UC2625DWG4. Texas Instruments provides application notes and design examples to help engineers implement overcurrent protection.
