UC3637NG4 - Texas Instruments

Description: Motor / Motion / Ignition Controllers & Drivers Switched Mode Controller

Download UC3637NG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

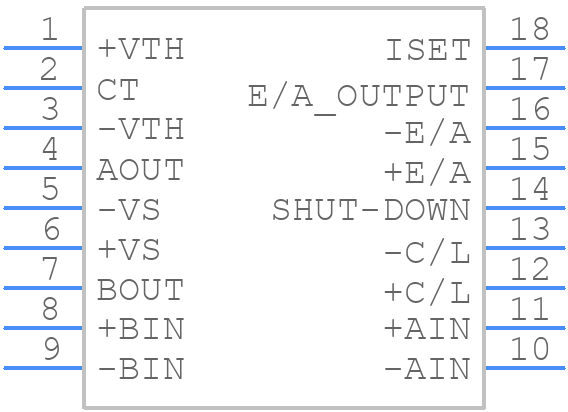

UC3637NG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
UC3637NG4 - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N(R-PDIP-T18)
click to zoom
3D Models
UC3637NG4 - Texas Instruments - 3D model - Dual-In-Line Packages - N(R-PDIP-T18)
click to zoom

UC3637NG4 Details

  • Manufacturer Part Number:

    UC3637NG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    18

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDIP-T18

  • JESD-609 Code:

    e4

  • Length:

    22.48 mm

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    0.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max (Isup):

    15 mA

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

UC3637NG4 Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a compact layout with the IC at the center, surrounded by input and output capacitors, and a separate ground plane for the high-current paths. Keep the feedback network components close to the IC and use a Kelvin connection for the sense resistors.
  • To ensure stability, use a compensation network with a pole-zero cancellation technique, and select the correct values for the compensation components based on the output voltage and current. Also, ensure that the input and output capacitors are properly sized and placed.
  • The UC3637NG4 can handle input voltages up to 40V, but it's recommended to operate within the specified range of 15V to 30V for optimal performance and reliability.
  • The output voltage of the UC3637NG4 can be programmed using an external resistor divider network connected to the VFB pin. The output voltage is determined by the ratio of the resistors and the internal reference voltage.
  • The bootstrap capacitor is used to generate the gate drive voltage for the high-side MOSFET. It's essential for proper operation and should be selected based on the input voltage and switching frequency.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

UC3637NG4 Overview

Use the download button to access the UC3637NG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC363, or try a keyword search, such as Motion Control Electronics
