UCC21520ADWR - Texas Instruments

Description: 4A/6A, 5.7 kVrms Isolated Dual Channel Gate Driver

Download UCC21520ADWR Model

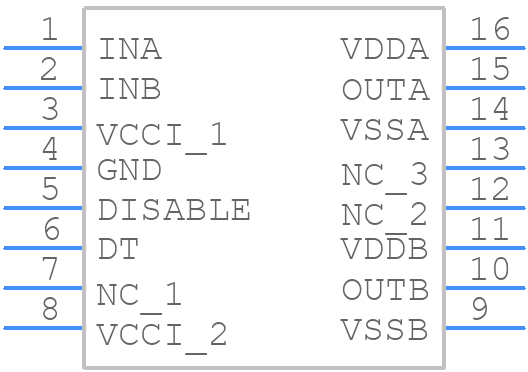

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UCC21520ADWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW-16
click to zoom
3D Models
UCC21520ADWR - Texas Instruments  - 3D model - Small Outline Packages - DW-16
click to zoom

UCC21520ADWR Details

  • Manufacturer Part Number:

    UCC21520ADWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-09-15

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current-Max:

    6 A

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    3.5 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    25 V

  • Supply Voltage1-Min:

    6.5 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.03 µs

  • Turn-on Time:

    0.03 µs

  • Width:

    7.5 mm

UCC21520ADWR Frequently Asked Questions (FAQs)

  • A good PCB layout for the UCC21520ADWR involves keeping the high-frequency switching nodes (e.g., SW and VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing loop areas to reduce EMI. TI provides a recommended PCB layout in the datasheet and application notes.
  • When selecting an input capacitor for the UCC21520ADWR, consider the capacitor's voltage rating, capacitance value, ESR, and ripple current rating. A good starting point is a 10-22uF ceramic capacitor with an X7R or X5R dielectric, rated for at least 1.5 times the input voltage. Ensure the capacitor can handle the ripple current and has a low ESR to minimize voltage ripple.
  • The UCC21520ADWR is rated for operation from -40°C to 125°C. As the ambient temperature increases, the device's performance may degrade, with reduced efficiency, increased power losses, and potential thermal shutdown. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.
  • The UCC21520ADWR has a built-in OCP feature. To implement OCP, connect a sense resistor (Rs) in series with the output inductor, and set the OCP threshold (Ilim) using an external resistor divider. Choose Rs and Ilim values based on the desired OCP level and output current rating. Ensure the sense resistor is rated for the output current and has a low tolerance to maintain accuracy.
  • The UCC21520ADWR is a higher-power version of the UCC21510, with a higher switching frequency (up to 2.2 MHz) and a wider input voltage range (4.5-18V). The UCC21520ADWR also has a more advanced feature set, including adjustable soft-start, synchronization, and a power-good output. Choose the UCC21520ADWR for higher-power applications or when advanced features are required.
