UCC21520DW - Texas Instruments

Description: Gate Drivers 4A/6A, 5.7 kVrms Isolated Dual Channel Gate Driver 16-SOIC -40 to 125

Download UCC21520DW Model

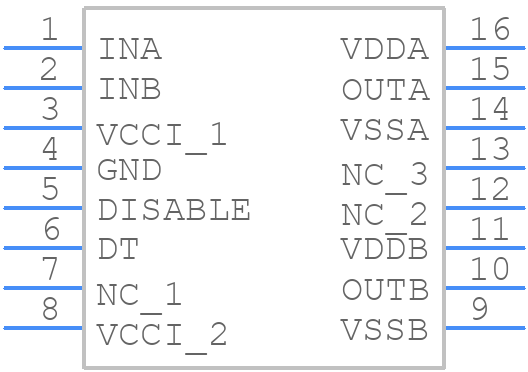

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UCC21520DW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0016B
click to zoom
3D Models
UCC21520DW - Texas Instruments  - 3D model - Small Outline Packages - DW0016B
click to zoom

UCC21520DW Details

  • Manufacturer Part Number:

    UCC21520DW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2016-06-19

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Built-in Protections:

    UNDER VOLTAGE

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Current-Max:

    6 A

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    3.5 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    25 V

  • Supply Voltage1-Min:

    9.2 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.03 µs

  • Turn-on Time:

    0.03 µs

  • Width:

    7.5 mm

UCC21520DW Frequently Asked Questions (FAQs)

  • A good PCB layout for the UCC21520DW involves keeping the input and output stages separate, using a solid ground plane, and minimizing loop areas for the high-frequency circuits. TI provides a recommended layout in the application note SLUA623.
  • When selecting a transformer for the UCC21520DW, consider the voltage ratio, turns ratio, magnetizing inductance, and leakage inductance. The transformer should be designed to handle the maximum output power and voltage of the converter. TI provides a transformer design guide in the application note SLUA624.
  • To ensure reliable operation of the UCC21520DW, it's essential to provide adequate thermal management. This includes using a heat sink, ensuring good airflow, and keeping the junction temperature below 150°C. TI provides thermal design guidelines in the application note SLUA625.
  • The UCC21520DW has built-in OCP and OVP features. To implement OCP, connect a sense resistor in series with the output inductor and connect the sense pin to the OCP pin. For OVP, connect a voltage divider network to the OVP pin to monitor the output voltage. TI provides detailed implementation guidelines in the datasheet.
  • The UCC21520DW is a higher-power version of the UCC21510, with a higher maximum output power and voltage rating. The UCC21520DW also has additional features such as adjustable undervoltage lockout (UVLO) and a wider input voltage range. TI provides a comparison table in the datasheet.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
