UCC21530DWKR - Texas Instruments

Description: 4-A, 6-A, 5.7-kVrms isolated dual-channel gate driver with enable

Download UCC21530DWKR Model

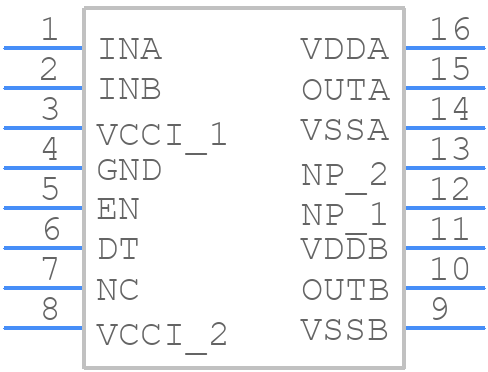

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UCC21530DWKR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - SOIC__
click to zoom
3D Models
UCC21530DWKR - Texas Instruments  - 3D model - Small Outline Packages - SOIC__
click to zoom

UCC21530DWKR Details

  • Manufacturer Part Number:

    UCC21530DWKR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2018-12-08

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Built-in Protections:

    TRANSIENT; UNDER VOLTAGE

  • High Side Driver:

    YES

  • Input Characteristics:

    GATED SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Current-Max:

    6 A

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    3.5 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    25 V

  • Supply Voltage1-Min:

    14.7 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.03 µs

  • Turn-on Time:

    0.03 µs

  • Width:

    7.5 mm

UCC21530DWKR Frequently Asked Questions (FAQs)

  • A good PCB layout for the UCC21530DWKR involves keeping the high-frequency switching nodes (e.g., SW and VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing loop areas to reduce EMI. TI provides a recommended PCB layout in the application note SLUA623.
  • The input capacitor should be selected based on the input voltage ripple requirement, output current, and operating frequency. A general guideline is to choose a capacitor with a capacitance value of at least 10uF, a voltage rating of 1.5 to 2 times the input voltage, and a low ESR (Equivalent Series Resistance) to minimize voltage ripple.
  • The UCC21530DWKR is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal design. It's essential to consider the thermal derating curves and the maximum junction temperature (TJ) of 150°C to ensure reliable operation.
  • To troubleshoot issues with the UCC21530DWKR, start by verifying the input voltage, output voltage, and current. Check the PCB layout, component values, and soldering quality. Use an oscilloscope to observe the switching waveforms and identify any anomalies. Consult the datasheet, application notes, and TI's support resources for guidance on troubleshooting and debugging.
  • Yes, the UCC21530DWKR is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is suitable for use in harsh environments. However, it's essential to follow the recommended design and manufacturing guidelines to ensure the device operates reliably in these applications.
