UCC21530QDWKQ1 - Texas Instruments

Description: Gate Drivers Automotive, 4-A, 6-A, 5.7-kVrms isolated dual-channel gate driver with enable 14-SOIC -40 to 125

Download UCC21530QDWKQ1 Model

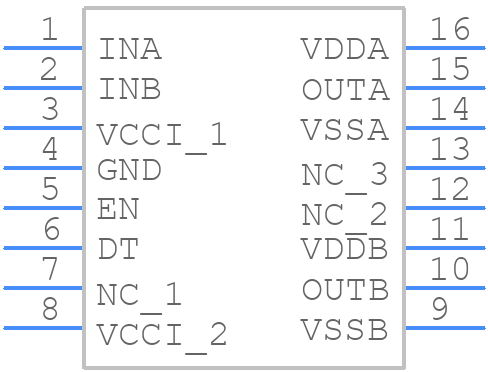

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UCC21530QDWKQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DWK0014A
click to zoom
3D Models
UCC21530QDWKQ1 - Texas Instruments  - 3D model - Small Outline Packages - DWK0014A
click to zoom

UCC21530QDWKQ1 Details

  • Manufacturer Part Number:

    UCC21530QDWKQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2018-12-08

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Built-in Protections:

    TRANSIENT; UNDER VOLTAGE

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Current Flow Direction:

    SOURCE AND SINK

  • Output Current-Max:

    6 A

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14/16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    3.5 mA

  • Supply Voltage-Max:

    18 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    25 V

  • Supply Voltage1-Min:

    14.7 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.03 µs

  • Turn-on Time:

    0.03 µs

  • Width:

    7.5 mm

UCC21530QDWKQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the UCC21530QDWKQ1 involves keeping the high-frequency switching nodes (e.g., SW and VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing the length of the power traces. TI provides a recommended PCB layout in the datasheet and application notes.
  • To ensure the UCC21530QDWKQ1 operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Use thermal design and layout techniques to keep the junction temperature below 150°C. Also, ensure the input voltage is within the recommended range (4.5V to 18V) and the output current is within the specified maximum rating (3A).
  • When selecting the output inductor and capacitor, consider the desired output voltage ripple, inductor core loss, and capacitor ESR. Choose an inductor with a high saturation current rating and a capacitor with a low ESR to minimize voltage ripple and ensure stable operation.
  • To troubleshoot issues with the UCC21530QDWKQ1, start by verifying the PCB layout and component selection. Check for proper decoupling, correct component values, and adequate heat sinking. Use an oscilloscope to observe the switching waveforms and identify any signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and debugging techniques.
  • The enable pin (EN) allows the UCC21530QDWKQ1 to be shut down or enabled. When EN is low, the device is in shutdown mode, and the output is disconnected from the input. This pin can be used to implement power sequencing, fault detection, or low-power modes in the system design.
