A good PCB layout for the UCC21540ADWK involves keeping the high-frequency switching nodes (e.g., SW and VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing the length of the power traces. TI provides a recommended PCB layout in the application note SLUA623.
To ensure proper thermal management, ensure good airflow around the device, use a heat sink if necessary, and follow the thermal design guidelines in the datasheet. The UCC21540ADWK has a thermal pad that must be connected to a solid ground plane to dissipate heat efficiently.
When selecting input and output capacitors, consider the voltage rating, capacitance value, and equivalent series resistance (ESR). The capacitors should be rated for the maximum input voltage and have a low ESR to minimize voltage ripple and ensure stability.
To troubleshoot issues with the UCC21540ADWK, use an oscilloscope to observe the waveforms at the SW and VIN pins. Check for proper PCB layout, component selection, and thermal management. Consult the datasheet and application notes for guidance on troubleshooting common issues.
The UCC21540ADWK is a high-voltage, high-frequency device with a unique combination of features, such as a wide input voltage range and high switching frequency. Compare the datasheets of similar devices, such as the UCC21520 and UCC21530, to determine the best fit for your specific application.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC21540ADWK Overview

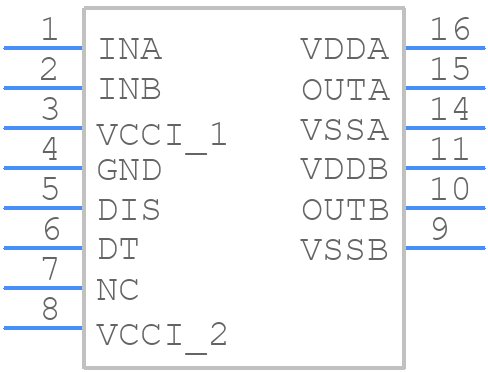

Use the download button to access the UCC21540ADWK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC21,
or try a keyword search, such as MOSFET Drivers
