UCC21540AQDWKRQ1 - Texas Instruments

Description: Gate Drivers Automotive reinforced dual-channel gate driver with 5V UVLO and 3.3mm channel-to-channel spacing 14-SOIC -40 to 125

Download UCC21540AQDWKRQ1 Model

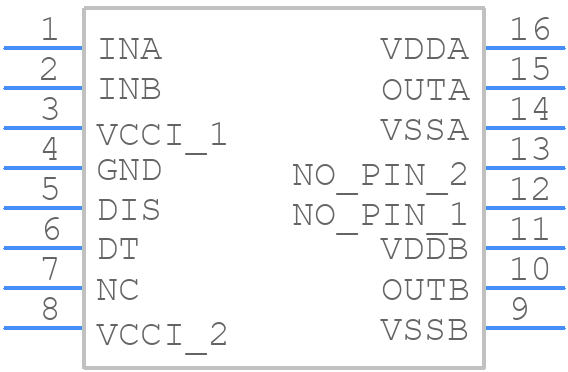

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UCC21540AQDWKRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DWK0016A
click to zoom
3D Models
UCC21540AQDWKRQ1 - Texas Instruments  - 3D model - Small Outline Packages - DWK0016A
click to zoom

UCC21540AQDWKRQ1 Details

  • Manufacturer Part Number:

    UCC21540AQDWKRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Country Of Origin:

    Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    1

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Current-Max:

    6 A

  • Output Peak Current Limit-Nom:

    4 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14/16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    3.5 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    18 V

  • Supply Voltage1-Min:

    6 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.04 µs

  • Turn-on Time:

    0.04 µs

  • Width:

    7.5 mm

UCC21540AQDWKRQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the UCC21540AQDWKRQ1 involves keeping the high-frequency signals away from the low-frequency signals, using a solid ground plane, and minimizing the length of the traces. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the reliability of the UCC21540AQDWKRQ1 in high-temperature applications, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and ensure good airflow around the device. Additionally, consider using a heat sink or a thermal management system to keep the junction temperature within the recommended range.
  • When using the UCC21540AQDWKRQ1, it's essential to consider EMI filtering to ensure compliance with regulatory requirements. Key considerations include using a common-mode choke, adding capacitors to filter out high-frequency noise, and using a shielded enclosure to minimize radiation.
  • To troubleshoot issues with the UCC21540AQDWKRQ1, start by checking the power supply voltage, ensuring it's within the recommended range. Then, verify the input and output signals, checking for any anomalies. Use an oscilloscope to analyze the waveforms and identify any issues. If the problem persists, consult the datasheet and application notes for guidance.
  • When using the UCC21540AQDWKRQ1 in a redundant or fault-tolerant system, it's essential to consider the implications of device failure. Ensure that the system is designed to detect and respond to device failures, and that the redundant components can take over seamlessly. Additionally, consider using a watchdog timer to monitor the device's operation and initiate a reset if necessary.
