UCC23514VDWVR - Texas Instruments

Description: Gate Drivers 4-A, 12-V UVLO 5-KVrms opto compatible single channel gate driver with miller clamp and split output 8-SOIC -40 to 125

Download UCC23514VDWVR Model

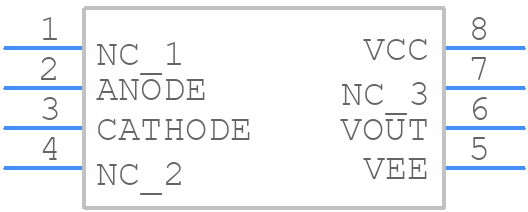

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
UCC23514VDWVR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DWV0008A
click to zoom
3D Models
UCC23514VDWVR - Texas Instruments  - 3D model - Small Outline Packages - DWV0008A
click to zoom

UCC23514VDWVR Details

  • Manufacturer Part Number:

    UCC23514VDWVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-07-26

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • High Side Driver:

    YES

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    7.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Current-Max:

    4.5 A

  • Output Peak Current Limit-Nom:

    4.5 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.45

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.8 mm

  • Supply Current-Max:

    2.2 mA

  • Supply Voltage-Max:

    33 V

  • Supply Voltage-Min:

    10 V

  • Supply Voltage-Nom:

    20 V

  • Supply Voltage1-Max:

    33 V

  • Supply Voltage1-Min:

    14 V

  • Supply Voltage1-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.105 µs

  • Turn-on Time:

    0.105 µs

  • Width:

    5.85 mm

UCC23514VDWVR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • To ensure reliability in high-temperature applications, it is essential to follow the recommended operating conditions, including the maximum junction temperature (TJ) of 150°C. Additionally, consider using thermal management techniques such as heat sinks, thermal interfaces, and airflow to keep the device temperature within the recommended range.
  • When using the UCC23514VDWVR in a design with a high voltage bus (> 24V), it is crucial to ensure that the device is properly biased and that the voltage ratings of the device are not exceeded. Additionally, consider using voltage regulators or dividers to reduce the voltage stress on the device, and ensure that the PCB layout is designed to minimize voltage drops and electromagnetic interference (EMI).
  • To troubleshoot issues with the UCC23514VDWVR, start by reviewing the datasheet and application notes to ensure that the device is being used within its recommended operating conditions. Use oscilloscopes and logic analyzers to monitor the device's inputs and outputs, and check for any signs of electrical overstress or damage. If the issue persists, consider consulting with Texas Instruments' technical support or seeking assistance from a qualified engineer.
  • When using the UCC23514VDWVR in a design with high-frequency switching (> 100 kHz), it is essential to consider the device's switching characteristics, including its rise and fall times, and ensure that the PCB layout is designed to minimize electromagnetic interference (EMI) and radiation. Additionally, consider using filtering or shielding techniques to reduce electromagnetic radiation and ensure compliance with regulatory requirements.
