SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.07 mm
Supply Current-Max:
0.75 mA
Supply Voltage-Max:
15 V
Supply Voltage-Min:
4.5 V
Supply Voltage-Nom:
14 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Turn-off Time:
0.05 µs
Turn-on Time:
0.04 µs
Width:
3 mm
UCC27324DGNRG4 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the application note SLUA623, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
Proper thermal management is crucial for the UCC27324DGNRG4. Ensure good thermal conductivity by using a thermal pad or thermal interface material (TIM) between the device and the heat sink. Also, follow the recommended PCB layout and use a heat sink with a thermal resistance of less than 10°C/W to keep the junction temperature below 150°C.
The maximum allowed voltage on the input pins of the UCC27324DGNRG4 is 6V, which is the absolute maximum rating. However, it's recommended to keep the input voltage below 5.5V to ensure reliable operation and prevent damage to the device.
Yes, the UCC27324DGNRG4 is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is manufactured using a automotive-qualified process. However, it's essential to follow the recommended design and testing guidelines to ensure the device meets the specific requirements of your application.
To troubleshoot issues with the UCC27324DGNRG4, start by verifying the input voltage, output voltage, and feedback connections. Check for proper PCB layout, component values, and soldering quality. Use an oscilloscope to monitor the output voltage and current, and consult the application notes and datasheet for guidance on troubleshooting common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC27324DGNRG4 Overview

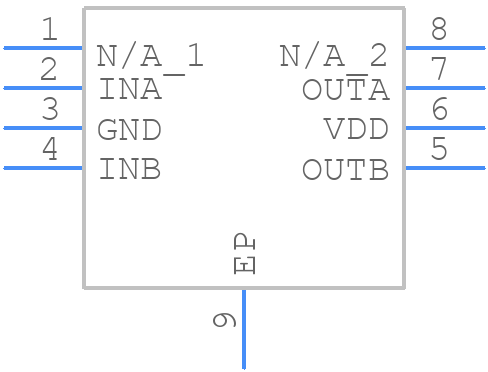

Use the download button to access the UCC27324DGNRG4 schematic symbol, PCB footprint, and 3D model.
