The UCC28051D is a high-frequency switching device, so it's crucial to follow good PCB layout practices to minimize electromagnetic interference (EMI) and ensure reliable operation. TI recommends placing the device close to the input capacitors, using a solid ground plane, and keeping the high-current paths short and wide.
The input capacitors should be selected based on the input voltage, current, and frequency of operation. TI recommends using low-ESR capacitors with a voltage rating of at least 1.5 times the maximum input voltage. The capacitance value should be chosen to ensure that the input voltage ripple is within the recommended range.
The UCC28051D is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and heat sinking to maintain a safe operating temperature.
To troubleshoot issues with the UCC28051D, start by verifying the input voltage, current, and frequency. Check the PCB layout and component placement for any potential issues. Use an oscilloscope to monitor the device's output and input signals. Consult the datasheet and application notes for guidance on troubleshooting common issues.
Yes, the UCC28051D can be used in a synchronous rectification topology. However, it's essential to ensure that the device is properly configured and the synchronous rectifier is correctly sized and controlled to prevent shoot-through currents and ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28051D Overview

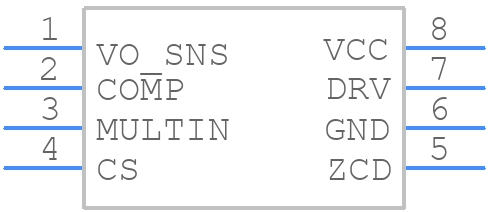

Use the download button to access the UCC28051D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
