Texas Instruments provides a recommended PCB layout in the application note SLUA689, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The selection of external components depends on the specific application requirements, such as input voltage, output voltage, and switching frequency. Texas Instruments provides a component selection guide in the datasheet, as well as online tools and calculators to help with component selection.
The maximum junction temperature of the UCC28056ADBVR is 150°C. To ensure it stays within the safe operating range, engineers should follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and monitoring the device temperature through the thermal monitoring pin (TMP).
The UCC28056ADBVR has a built-in overcurrent protection (OCP) feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. Additionally, engineers can implement short-circuit protection by monitoring the output voltage and current, and shutting down the device in case of a fault condition.
The recommended startup sequence for the UCC28056ADBVR is to first apply the input voltage, then enable the device by pulling the EN pin high. Engineers should ensure a smooth startup by providing a soft-start circuit to limit the inrush current, and by using a voltage supervisor to monitor the input voltage and ensure it is within the safe operating range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28056ADBVR Overview

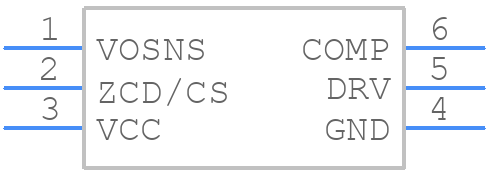

Use the download button to access the UCC28056ADBVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
