Texas Instruments provides a recommended PCB layout in the application note SLUA689, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The selection of external components depends on the specific application requirements, such as the input voltage, output voltage, and switching frequency. Texas Instruments provides a component selection guide in the datasheet and application notes, which can be used as a starting point for component selection. Additionally, online tools such as the TI Power Stage Designer can be used to simplify the component selection process.
The maximum junction temperature of the UCC28056ADBVT is 150°C. To ensure that the device stays within the safe operating range, it is essential to provide adequate heat sinking, such as a thermal pad or a heat sink, and to follow the recommended PCB layout guidelines. Additionally, the device's thermal protection feature can be enabled to shut down the device in case of overheating.
Troubleshooting issues with the UCC28056ADBVT requires a systematic approach, including checking the PCB layout, component values, and soldering quality. Texas Instruments provides a troubleshooting guide in the application note SLUA689, which includes a checklist of common issues and their solutions. Additionally, online resources such as the TI E2E forum can be used to seek help from experienced engineers and TI experts.
Yes, the UCC28056ADBVT is compatible with lead-free soldering processes. Texas Instruments recommends following the JEDEC standard J-STD-020D for lead-free soldering, which specifies a peak temperature of 260°C and a dwell time of 20-40 seconds. Additionally, the device's moisture sensitivity level (MSL) is 3, which means that it can be handled and stored in a dry environment without special precautions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28056ADBVT Overview

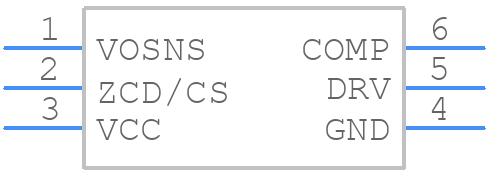

Use the download button to access the UCC28056ADBVT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
