A good PCB layout for the UCC28056DBVR involves keeping the high-frequency switching nodes (e.g., SW and VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing loop areas. TI provides a recommended layout in the application note SLUA623.
The inductor value depends on the input voltage, output voltage, and desired switching frequency. A good starting point is to use the inductor selection guide in the UCC28056DBVR datasheet, and then fine-tune the value based on the specific design requirements.
The maximum ambient temperature for the UCC28056DBVR is 85°C, but the device can operate up to 125°C junction temperature. Be sure to consider thermal derating and heat sinking requirements for high-temperature applications.
Yes, the UCC28056DBVR can be used in a synchronous rectification topology. However, this requires additional external components and careful design consideration to ensure proper operation and minimize power losses.
To troubleshoot issues with the UCC28056DBVR, start by checking the PCB layout, component values, and voltage rails. Use an oscilloscope to observe the switching waveforms and identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28056DBVR Overview

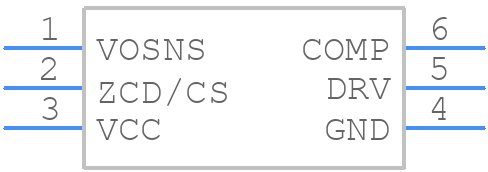

Use the download button to access the UCC28056DBVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
