Texas Instruments provides a recommended PCB layout in the application note SLUA689, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The selection of external components depends on the specific application requirements, such as the input voltage, output voltage, and switching frequency. Texas Instruments provides a component selection guide in the datasheet, and also offers online tools and calculators to help with component selection.
The maximum junction temperature of the UCC28056DBVT is 150°C. To ensure it stays within the safe operating range, engineers should follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and monitoring the device temperature through the thermal monitoring pin (TMP).
The UCC28056DBVT has a built-in overcurrent protection feature that can be enabled by connecting the OC pin to a resistor and capacitor network. The datasheet provides a detailed description of the overcurrent protection circuit and the calculation of the required component values.
The recommended startup sequence for the UCC28056DBVT is to first apply the input voltage, then the enable signal, and finally the clock signal. Engineers should also ensure that the input voltage is stable and within the recommended range before applying the enable signal.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28056DBVT Overview

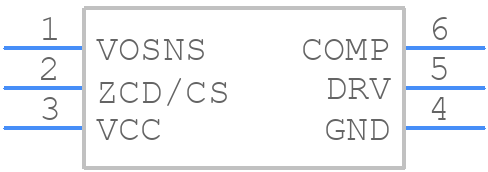

Use the download button to access the UCC28056DBVT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
