Texas Instruments provides a recommended PCB layout in the XUCC28056DBV datasheet, but it's essential to follow additional guidelines for optimal thermal performance. Ensure a solid ground plane, use thermal vias, and keep the device away from heat sources. A 4-layer PCB with a dedicated power plane is recommended.
The input capacitor values depend on the input voltage, output voltage, and desired output ripple. A general rule of thumb is to use a 10-22uF ceramic capacitor with an X7R or X5R dielectric. However, it's recommended to consult the TI Webench tool or the datasheet's application notes for specific guidance.
The XUCC28056DBV can deliver up to 6A of output current, but this is dependent on the input voltage, output voltage, and thermal conditions. It's essential to consult the datasheet's thermal derating curves and ensure proper thermal management to achieve the maximum output current.
The XUCC28056DBV has a built-in OCP and SCP feature. To implement it, connect the OCP pin to a resistor divider network that sets the current limit. The SCP feature is enabled by default and will shut down the device in case of a short circuit. Consult the datasheet's application notes for specific implementation details.
The recommended input voltage range for the XUCC28056DBV is 4.5V to 18V. However, the device can operate with input voltages as low as 4V and as high as 20V, but with reduced performance and efficiency.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XUCC28056DBV Overview

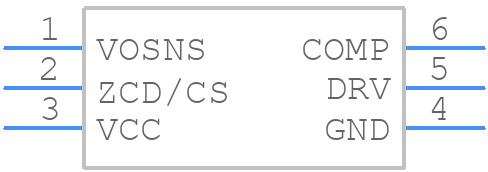

Use the download button to access the XUCC28056DBV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XUCC2,
or try a keyword search, such as Switching Regulator or Controllers
