A good PCB layout for the UCC28070APW involves keeping the high-frequency switching nodes (e.g., SW and VIN) away from sensitive analog nodes, using a solid ground plane, and minimizing loop areas. TI provides a recommended layout in the application note SLUA623.
The inductor value depends on the input voltage, output voltage, and desired switching frequency. A good starting point is to use the inductor selection guide in the UCC28070APW datasheet, and then fine-tune the value based on the specific design requirements.
The maximum ambient temperature for the UCC28070APW is 85°C, but the device can operate up to 125°C junction temperature. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.
Yes, the UCC28070APW can be used in a synchronous rectification topology. However, this requires additional external components and careful design to ensure proper operation. TI provides application notes and reference designs to help with this implementation.
To troubleshoot oscillations or instability, check the PCB layout, component selection, and design parameters. Ensure that the input and output capacitors are properly selected, and the feedback loop is stable. Use an oscilloscope to observe the waveforms and identify the source of the issue.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28070APW Overview

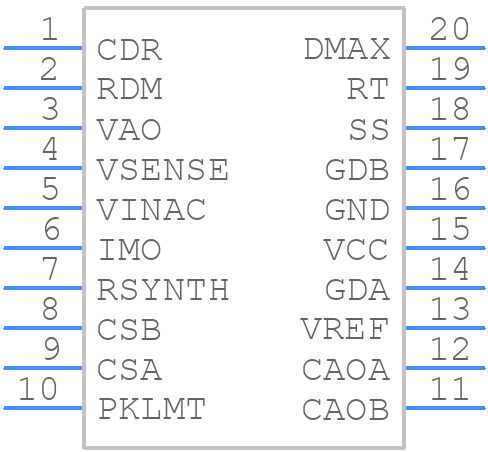

Use the download button to access the UCC28070APW schematic symbol, PCB footprint, and 3D model.
