A good PCB layout for the UCC28070APWR involves separating the high-frequency switching nodes from the low-frequency control circuits, using a solid ground plane, and minimizing the length of the high-current paths. TI provides a recommended PCB layout in the application note SLUA433.
The input capacitor should be chosen based on the input voltage ripple requirement, output power, and operating frequency. A general guideline is to use a capacitor with a capacitance value of at least 10uF and a voltage rating of 1.5 to 2 times the input voltage. X5R or X7R ceramic capacitors are recommended.
The UCC28070APWR is a 70V, 7A synchronous buck converter. The maximum output current depends on the input voltage, output voltage, and thermal conditions. In general, the device can deliver up to 7A of output current, but the actual current limit may be lower depending on the specific application.
The UCC28070APWR has a built-in overcurrent protection feature that can be enabled by connecting the OC pin to a resistor divider network. The resistor values should be chosen based on the desired overcurrent threshold and the output voltage. TI provides a detailed example in the datasheet.
The EN pin is the enable input that allows the user to turn the converter on and off. When the EN pin is high, the converter is enabled, and when it is low, the converter is disabled. The EN pin can be connected to a logic signal or a switch to control the converter's operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC28070APWR Overview

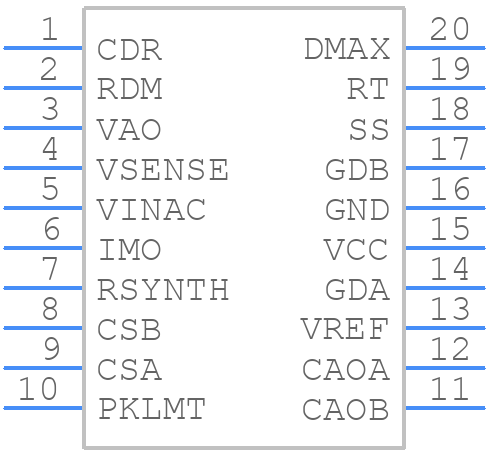

Use the download button to access the UCC28070APWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
