Texas Instruments provides a recommended PCB layout in the application note SLUA365A, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The selection of external components such as the input capacitor, output capacitor, and feedback resistors depends on the specific application requirements. Texas Instruments provides a component selection guide in the datasheet, and also offers online tools such as the Power Stage Designer and the Capacitor Selection Tool to help with component selection.
The UCC2808N-1 has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management and heat sinking to prevent overheating and ensure reliable operation.
Texas Instruments provides a troubleshooting guide in the application note SLUA365A, which covers common issues such as startup problems, oscillations, and overvoltage protection. Additionally, the datasheet provides a detailed description of the device's fault detection and protection features.
Yes, the UCC2808N-1 is compatible with lead-free soldering processes. Texas Instruments ensures that all its products meet the requirements of the European Union's RoHS (Restriction of Hazardous Substances) directive.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC2808N-1 Overview

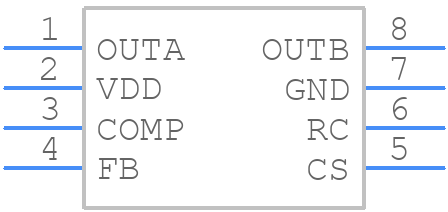

Use the download button to access the UCC2808N-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC28,
or try a keyword search, such as Switching Regulator or Controllers
