A good PCB layout for the UCC29002DR involves keeping the input and output stages separate, using a star-ground configuration, and placing the input filter components close to the IC. Additionally, using a solid ground plane and minimizing trace lengths can help reduce EMI.
The choice of input filter components depends on the specific application requirements, such as the input voltage range, output voltage, and desired level of noise attenuation. A good starting point is to use the recommended component values in the datasheet, and then adjust them based on simulation and experimentation.
The UCC29002DR can deliver up to 2A of output current, but this depends on the input voltage, output voltage, and thermal conditions. It's essential to check the datasheet and perform thermal calculations to ensure the device can deliver the required output current.
To ensure the UCC29002DR operates within its SOA, it's essential to monitor the input voltage, output voltage, and output current. The device should be operated within the recommended voltage and current ranges, and thermal monitoring should be implemented to prevent overheating.
Thermal management is critical for the UCC29002DR. Key considerations include providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device. The device's thermal pad should be connected to a solid ground plane to help dissipate heat.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC29002DR Overview

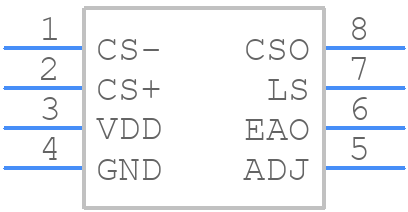

Use the download button to access the UCC29002DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC29,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
