Texas Instruments recommends a compact layout with short traces, and placing the device close to the power source. Additionally, a solid ground plane and a decoupling capacitor (e.g. 10nF) between VCC and GND can help reduce EMI and noise.
Refer to the application notes and design guides provided by Texas Instruments, such as the 'UCC3626DW EVM User's Guide' and 'Off-Line Switcher Design Guide'. These resources provide detailed information on biasing, configuration, and design considerations for various applications.
The UCC3626DW has a maximum junction temperature (TJ) of 150°C. Ensure good thermal conduction by using a heat sink or thermal pad, and follow the recommended PCB layout and thermal design guidelines. Monitor the device temperature and adjust the design as needed to prevent overheating.
The UCC3626DW is a commercial-grade device, but it can be used in high-reliability applications with proper design, testing, and validation. Texas Instruments provides relevant certifications and compliance information, such as IEC 62368-1 and UL 62368-1, in the device's datasheet and application notes.
Refer to the troubleshooting section in the datasheet and application notes. Common issues can often be resolved by checking the power supply, output voltage, and feedback loop. Use an oscilloscope to monitor the device's behavior and identify the root cause of the issue.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
UCC3626DW Overview

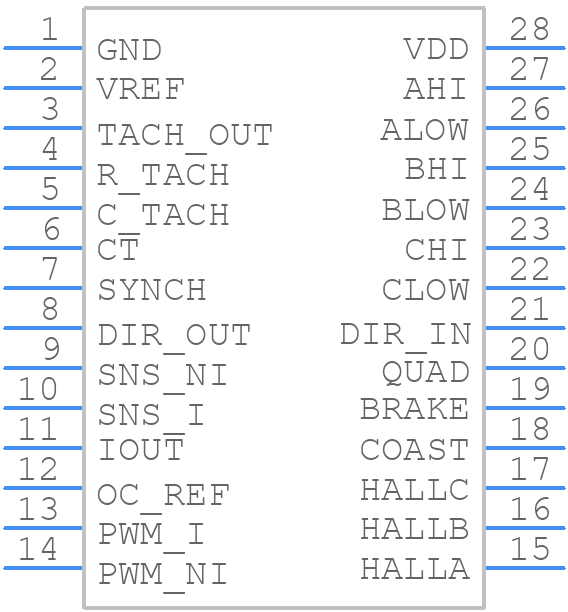

Use the download button to access the UCC3626DW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC36,
or try a keyword search, such as Motion Control Electronics
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
