Texas Instruments provides a recommended PCB layout in the application note SLUA271, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The input capacitor selection depends on the input voltage, output voltage, and output current requirements. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value of 10-22 μF. Additionally, the capacitor's ESR (Equivalent Series Resistance) should be low enough to minimize voltage ripple and ensure stability.
The UCC3912PWPTR is rated for operation from -40°C to 85°C ambient temperature range. However, the device's performance and reliability may degrade at higher temperatures, so it's essential to ensure proper thermal management and heat sinking in high-temperature applications.
Yes, the UCC3912PWPTR is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive grade devices, and it's also suitable for use in industrial and medical applications that require high reliability and long-term stability.
Common issues with the UCC3912PWPTR can often be attributed to poor PCB layout, inadequate input decoupling, or incorrect component selection. To troubleshoot, start by verifying the PCB layout against the recommended layout in the application note, and then check the input decoupling capacitors and component values. If the issue persists, consult the Texas Instruments support resources or contact their technical support team for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCC3912PWPTR Overview

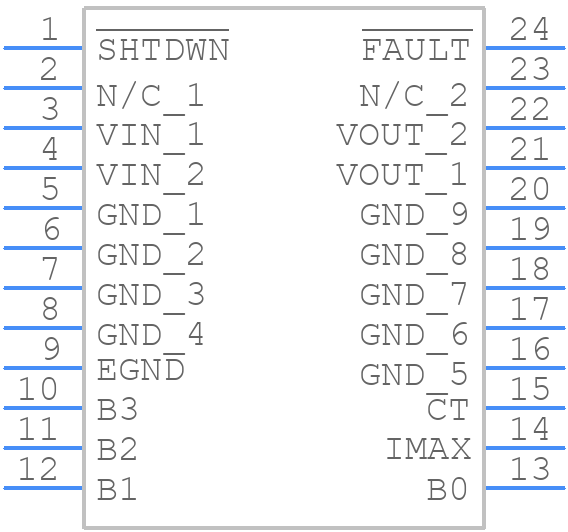

Use the download button to access the UCC3912PWPTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCC39,
or try a keyword search, such as Power Management Circuits
