Texas Instruments provides a recommended PCB layout in the UCD9081RHBRG4 Evaluation Module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise and EMI.
The UCD9081RHBRG4 is a highly configurable device, and configuration is typically done using the Fusion Digital Power Designer software provided by Texas Instruments. This software allows designers to configure the device for specific applications, including battery charging and power supply, and generate the necessary firmware and configuration files.
The UCD9081RHBRG4 is rated for operation from -40°C to 125°C, but the maximum ambient temperature range may vary depending on the specific application and thermal management. High temperatures can affect the device's performance, including reduced accuracy and increased power consumption. It is essential to ensure proper thermal management and follow the recommended operating conditions to maintain optimal performance.
Troubleshooting issues with the UCD9081RHBRG4 typically involves using the device's built-in diagnostic features, such as the error registers and status flags, to identify the source of the problem. Additionally, Texas Instruments provides a range of debugging tools, including the Fusion Digital Power Designer software and the UCD9081RHBRG4 EVM, which can be used to debug and troubleshoot issues.
To ensure EMC with the UCD9081RHBRG4, designers should follow proper PCB layout and design practices, including using shielding, filtering, and decoupling to minimize noise and EMI. Additionally, the device's clock frequency and switching frequency should be carefully selected to minimize radiation, and the device should be placed in a shielded enclosure to prevent electromagnetic radiation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UCD9081RHBRG4 Overview

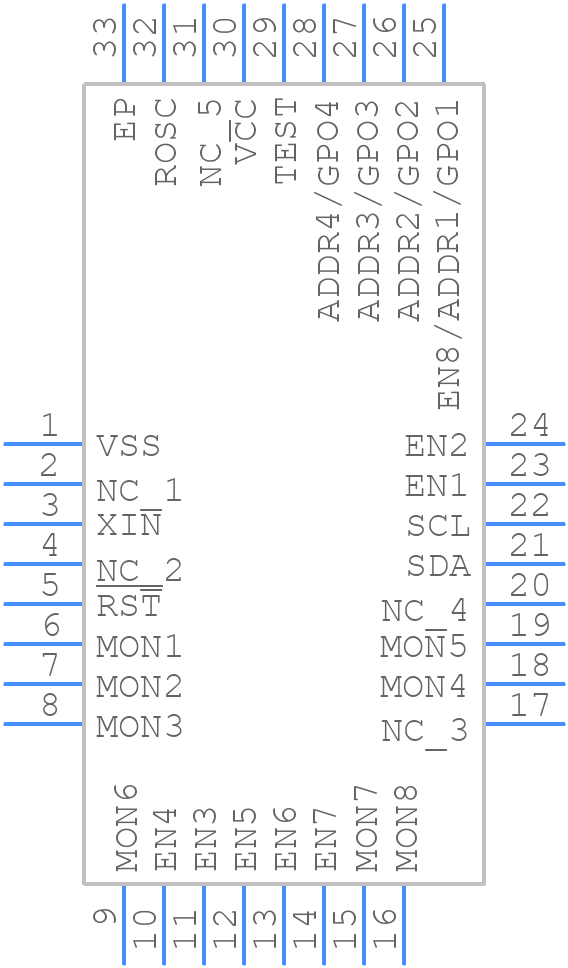

Use the download button to access the UCD9081RHBRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UCD90,
or try a keyword search, such as Power Management Circuits
