USBN9604-28MX/NOPB - Texas Instruments

Description: USB Interface IC USBN9604 28-SOIC

Download USBN9604-28MX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

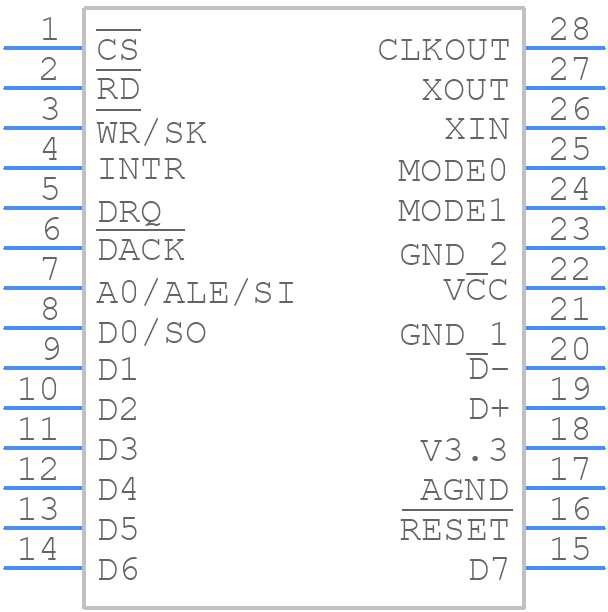

USBN9604-28MX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
USBN9604-28MX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - 28 SOIC
click to zoom
3D Models
USBN9604-28MX/NOPB - Texas Instruments - 3D model - Small Outline Packages - 28 SOIC
click to zoom

USBN9604-28MX/NOPB Details

  • Manufacturer Part Number:

    USBN9604-28MX/NOPB

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-28

  • Pin Count:

    28

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Address Bus Width:

    8

  • Bus Compatibility:

    USB

  • Clock Frequency-Max:

    24 MHz

  • External Data Bus Width:

    8

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    17.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    40 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, UNIVERSAL SERIAL BUS

USBN9604-28MX/NOPB Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode filter or ferrite bead to reduce EMI.
  • Use a thermal pad or thermal interface material to improve heat dissipation. Ensure good airflow and avoid blocking airflow around the device. Follow the recommended operating conditions and derating guidelines.
  • Operating at a lower voltage may reduce performance and increase power consumption. Operating at a higher voltage may reduce lifespan and increase the risk of damage. Always follow the recommended voltage range (3.3V ± 10%) for optimal performance and reliability.
  • Use an oscilloscope to check signal quality and eye diagrams. Verify that the signal is within the recommended voltage and frequency ranges. Check for noise sources, crosstalk, and impedance mismatches. Consult the datasheet and application notes for troubleshooting guidelines.
  • Follow the recommended design and layout guidelines. Implement redundant systems and error detection/correction mechanisms. Perform thorough testing and validation, including environmental and stress testing. Consult with a qualified engineer or safety expert.
