VFC110APG4 - Texas Instruments

Description: Voltage to Frequency & Frequency to Voltage VOLTAGE-TO-FREQUENCY CONVERTER

Download VFC110APG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

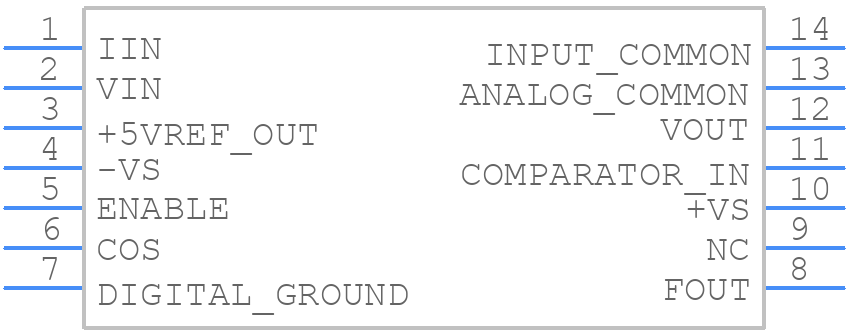

VFC110APG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
VFC110APG4 - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N (R-PDIP-T)
click to zoom
3D Models
VFC110APG4 - Texas Instruments - 3D model - Dual-In-Line Packages - N (R-PDIP-T)
click to zoom

VFC110APG4 Details

  • Manufacturer Part Number:

    VFC110APG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    GREEN, PLASTIC, DIP-14

  • Pin Count:

    14

  • HTS Code:

    8542.39.00.50

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Converter Type:

    VOLTAGE TO FREQUENCY CONVERTER
