VRE102M - Apex Microtechnology

Description: The VRE102 precision Integrated Circuit provides ultra-stable ±10V output with ±1.0mV initial accuracy and a temperature coefficient as low as 1.09 ppm/°C over the full military temperature range. This improvement in accuracy is made possible by a unique, proprietary multipoint laser compensation technique. Significant improvements have been made in other performance parameters including initial accuracy, warm-up drift, line regulation, and long-term stability, making the VRE102 the most accurate and stable

Download VRE102M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

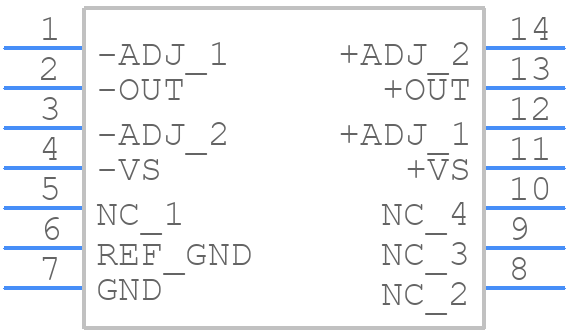

Symbol
VRE102M - Apex Microtechnology - PCB symbol
click to zoom

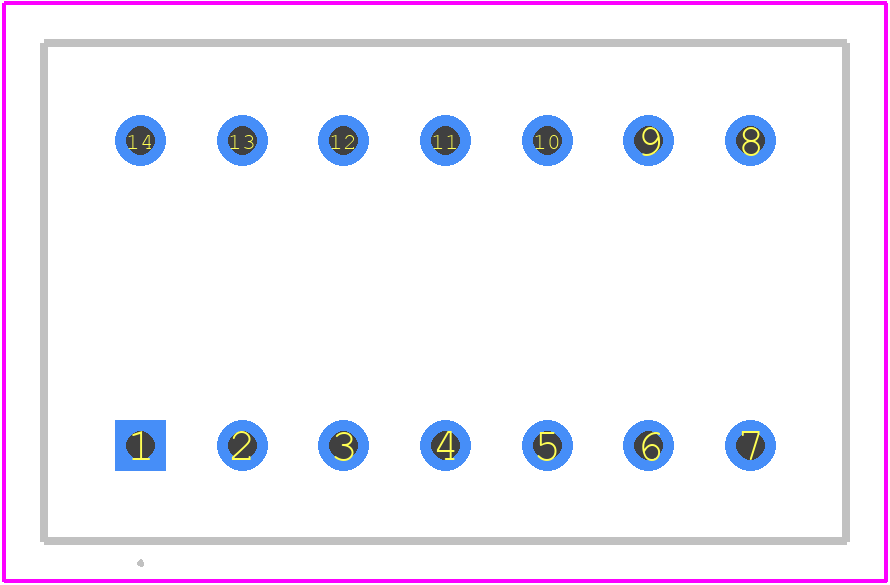

PCB Footprints
VRE102M - Apex Microtechnology PCB footprint - Other - Other - HC
click to zoom
3D Models
VRE102M - Apex Microtechnology - 3D model - Other - HC
click to zoom

VRE102M Details

  • Manufacturer Part Number:

    VRE102M

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    14

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Apex Microtechnology Inc

  • YTEOL:

    5.8

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-CDIP-T14

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Voltage-Max:

    10.001 V

  • Output Voltage-Min:

    9.999 V

  • Output Voltage-Nom:

    10 V

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    DIP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Temp Coef of Voltage-Max:

    0.66 ppm/°C

  • Temperature Grade:

    MILITARY

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Trim/Adjustable Output:

    YES

VRE102M Frequently Asked Questions (FAQs)

  • Apex Microtechnology recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure optimal thermal performance.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, and consider using a heat sink or thermal interface material to reduce junction temperature.
  • The maximum safe operating area (SOA) for the VRE102M is typically defined by the device's voltage and current ratings. However, it's recommended to consult with Apex Microtechnology's application engineers to determine the specific SOA for your application.
  • To protect the VRE102M from EOS and ESD, it's essential to follow proper handling and assembly procedures, use ESD-safe materials, and consider adding protection circuits or devices to the design.
  • Apex Microtechnology recommends following the test and measurement procedures outlined in the datasheet, and consulting with their application engineers for specific guidance on testing and measurement techniques.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VRE102M Overview

Use the download button to access the VRE102M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VRE10, or try a keyword search, such as Voltage References
