VRE107M - Apex Microtechnology

Description: The VRE107 series of precision Integrated Circuits provides ultra-stable +5V output with ±0.8mV initial accuracy and a temperature coefficient as low as 1.33ppm/°C over the full military temperature range. This improvement in accuracy is made possible by a unique, proprietary multipoint laser compensation technique. Significant improvements have been made in other performance parameters as well, including initial accuracy, warm-up drift, line regulation, and long-term stability, making the VRE107 series th

Download VRE107M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

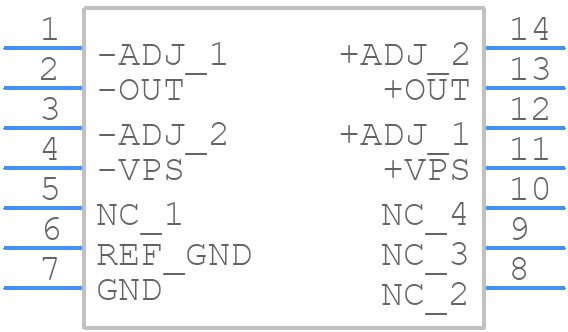

Symbol
VRE107M - Apex Microtechnology - PCB symbol
click to zoom

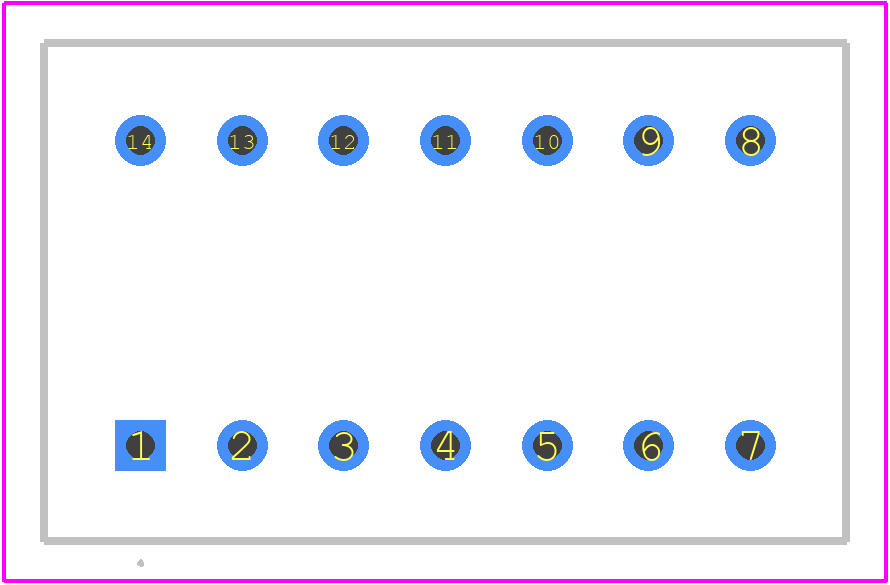

PCB Footprints
VRE107M - Apex Microtechnology PCB footprint - Other - Other - HC
click to zoom
3D Models
VRE107M - Apex Microtechnology - 3D model - Other - HC
click to zoom

VRE107M Details

  • Manufacturer Part Number:

    VRE107M

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    14

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Apex Microtechnology Inc

  • YTEOL:

    6

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-CDIP-T14

  • Length:

    20.07 mm

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Voltage-Max:

    5.0008 V

  • Output Voltage-Min:

    4.9992 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.57 mm

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Temp Coef of Voltage-Max:

    0.77 ppm/°C

  • Temperature Grade:

    MILITARY

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Trim/Adjustable Output:

    YES

  • Width:

    7.62 mm

VRE107M Frequently Asked Questions (FAQs)

  • Apex Microtechnology recommends a 4-layer PCB with a solid ground plane, and thermal vias under the package to dissipate heat. A thermal pad on the bottom of the package should be connected to a heat sink or a thermal management system.
  • To ensure a stable output voltage, Apex recommends using a minimum output capacitance of 10uF, and a maximum equivalent series resistance (ESR) of 1 ohm. Additionally, the input voltage should be well-regulated and filtered to prevent noise and ripple.
  • The maximum safe operating area (SOA) for the VRE107M is defined by the maximum junction temperature (TJ) of 150°C, and a maximum power dissipation of 15W. Operating the device within these limits ensures reliable operation and prevents damage.
  • Apex recommends using overvoltage protection (OVP) and overcurrent protection (OCP) circuits to prevent damage from voltage and current surges. A fuse or a current-limiting resistor can be used to protect the device from overcurrent conditions.
  • Apex recommends a soft-start sequence to prevent inrush currents and voltage spikes. The input voltage should be ramped up slowly, and the output voltage should be monitored to ensure a stable output during start-up and shutdown.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VRE107M Overview

Use the download button to access the VRE107M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VRE10, or try a keyword search, such as Voltage References
