VRE107MA - Apex Microtechnology

Description: The VRE107 series of precision Integrated Circuits provides ultra-stable +5V output with ±0.8mV initial accuracy and a temperature coefficient as low as 1.33ppm/°C over the full military temperature range. This improvement in accuracy is made possible by a unique, proprietary multipoint laser compensation technique. Significant improvements have been made in other performance parameters as well, including initial accuracy, warm-up drift, line regulation, and long-term stability, making the VRE107 series th

Download VRE107MA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

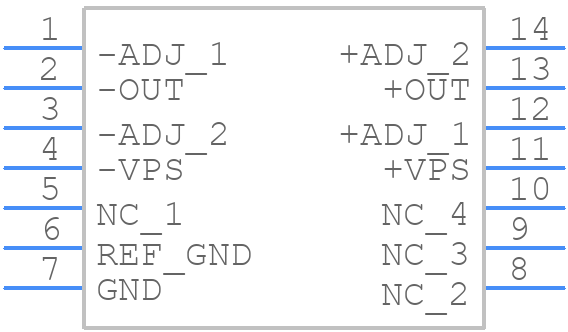

VRE107MA - Apex Microtechnology - PCB symbol
click to zoom
PCB Footprints

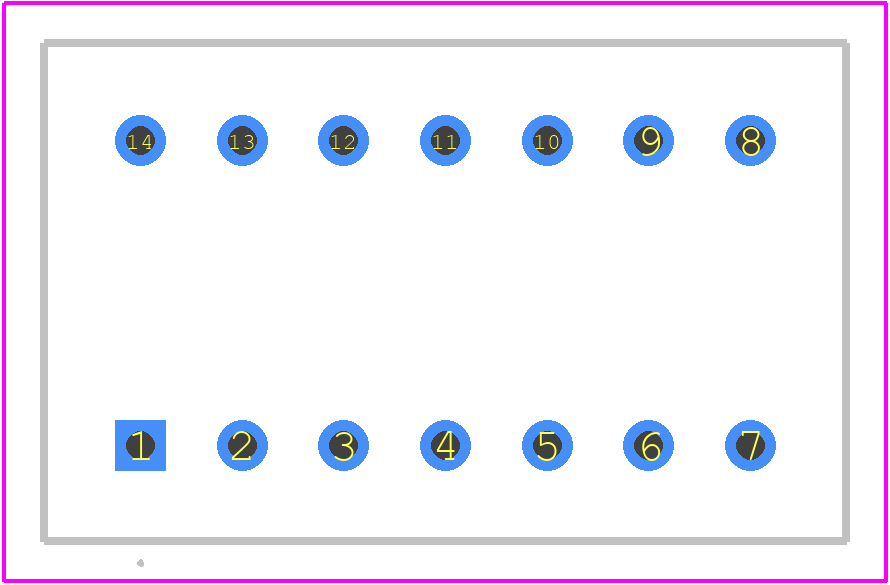

VRE107MA - Apex Microtechnology PCB footprint - Other - Other - HC
click to zoom
3D Models
VRE107MA - Apex Microtechnology - 3D model - Other - HC
click to zoom

VRE107MA Details

  • Manufacturer Part Number:

    VRE107MA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    14

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Apex Microtechnology Inc

  • YTEOL:

    5.3

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-CDIP-T14

  • Length:

    20.07 mm

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Voltage-Max:

    5.0008 V

  • Output Voltage-Min:

    4.9992 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.57 mm

  • Supply Voltage-Max (Vsup):

    22 V

  • Supply Voltage-Min (Vsup):

    13.5 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Temp Coef of Voltage-Max:

    0.66 ppm/°C

  • Temperature Grade:

    MILITARY

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Trim/Adjustable Output:

    YES

  • Width:

    7.62 mm

VRE107MA Frequently Asked Questions (FAQs)

  • Apex Microtechnology recommends a 4-layer PCB with a solid ground plane, and thermal vias under the device to dissipate heat. A thermal pad on the bottom of the package should be connected to a heat sink or a thermal management system.
  • The VRE107MA requires a dual-supply voltage configuration. Ensure the voltage rails are well-regulated and decoupled, and the input and output stages are properly biased. Consult the datasheet for recommended biasing circuits and component values.
  • Use a shielded enclosure, and ensure the PCB is designed with EMI and RFI considerations in mind. Use bypass capacitors and ferrite beads to filter out high-frequency noise. Consult the datasheet for recommended layout and shielding techniques.
  • Use a systematic approach to troubleshoot issues. Check the power supply, input and output signals, and biasing circuits. Use oscilloscopes and signal generators to test the device. Consult the datasheet and application notes for troubleshooting guidelines.
  • The VRE107MA is designed for high-reliability applications. Ensure the device is operated within the recommended temperature range, and follow proper storage and handling procedures. Consult the datasheet for environmental and reliability specifications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

VRE107MA Overview

Use the download button to access the VRE107MA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like VRE10, or try a keyword search, such as Voltage References
