W632GU6RB-11 - Winbond

Description: 2Gb DDR3 SDRAM 1866MHz VFBGA96

Download W632GU6RB-11 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

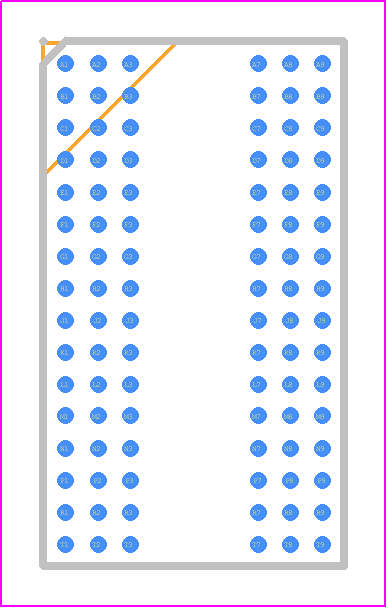

W632GU6RB-11 - Winbond PCB footprint - BGA - BGA - VFBGA - 96
click to zoom
3D Models
W632GU6RB-11 - Winbond  - 3D model - BGA - VFBGA - 96
click to zoom

W632GU6RB-11 Details

  • Manufacturer Part Number:

    W632GU6RB-11

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.36

  • Manufacturer:

    Winbond Electronics Corp

  • YTEOL:

    4

  • Access Mode:

    MULTI BANK PAGE BURST

  • Additional Feature:

    AUTO/SELF REFRESH; IT ALSO REQUIRES 1.5V NOMINAL SUPPLY

  • Clock Frequency-Max (fCLK):

    933 MHz

  • I/O Type:

    COMMON

  • Interleaved Burst Length:

    8

  • JESD-30 Code:

    R-PBGA-B96

  • Length:

    13 mm

  • Memory Density:

    2147483648 bit

  • Memory IC Type:

    DDR3L DRAM

  • Memory Width:

    16

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    96

  • Number of Words:

    134217728 words

  • Number of Words Code:

    128000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    95 °C

  • Organization:

    128MX16

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA96,9X16,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Refresh Cycles:

    8192

  • Seated Height-Max:

    1 mm

  • Self Refresh:

    YES

  • Sequential Burst Length:

    8

  • Standby Current-Max:

    0.032 A

  • Supply Current-Max:

    0.133 mA

  • Supply Voltage-Max (Vsup):

    1.45 V

  • Supply Voltage-Min (Vsup):

    1.283 V

  • Supply Voltage-Nom (Vsup):

    1.35 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    7.5 mm
