WL1837MODGIMOCT - Texas Instruments

Description: WLAN+BTCombo Module IEEE 802.11a/b/g/n Bluetooth v4.1 100-Pin SMD Module

Download WL1837MODGIMOCT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
WL1837MODGIMOCT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

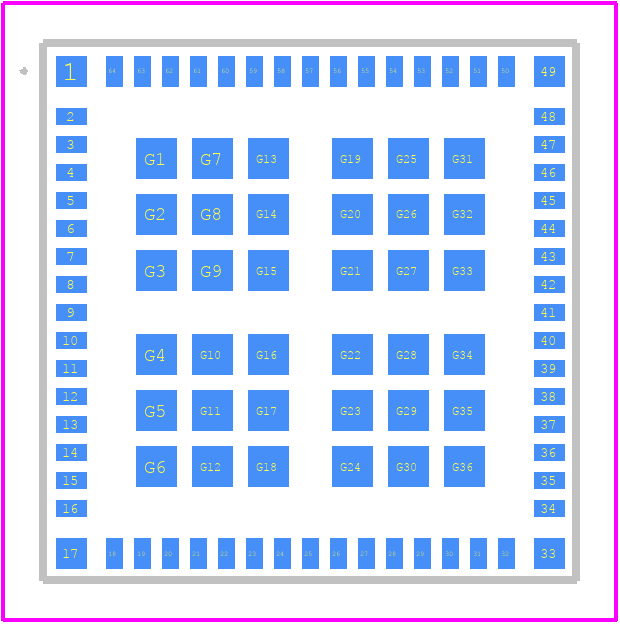

WL1837MODGIMOCT - Texas Instruments PCB footprint - Other - Other - WL1837MODGIMOCT-4
click to zoom
3D Models
WL1837MODGIMOCT - Texas Instruments - 3D model - Other - WL1837MODGIMOCT-4
click to zoom

WL1837MODGIMOCT Details

  • Manufacturer Part Number:

    WL1837MODGIMOCT

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.75

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    100000 Mbps

  • JESD-30 Code:

    R-PBGA-B100

  • JESD-609 Code:

    e4

  • Length:

    13.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    100

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LGA

  • Package Equivalence Code:

    LGA100(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Nom:

    3.7 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BUTT

  • Terminal Pitch:

    0.7 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    13.3 mm

WL1837MODGIMOCT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the WL1837MODGIMOCT Design Guide, which includes guidelines for component placement, routing, and grounding to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The WL1837MODGIMOCT has a built-in coexistence mechanism that allows Wi-Fi and Bluetooth to operate simultaneously. To configure coexistence, use the TI's WiLink 8 software development kit (SDK) and follow the guidelines in the WL1837MODGIMOCT User's Guide.
  • The WL1837MODGIMOCT is rated for operation from -40°C to 85°C, but it's recommended to operate within the 0°C to 70°C range for optimal performance and reliability.
  • The WL1837MODGIMOCT supports antenna diversity, which can improve Wi-Fi performance. To implement antenna diversity, use the TI's WiLink 8 SDK and follow the guidelines in the WL1837MODGIMOCT User's Guide, which includes examples of antenna diversity configurations.
  • The power consumption of the WL1837MODGIMOCT varies depending on the operating mode. In Wi-Fi mode, the typical power consumption is around 350mA. In Bluetooth mode, it's around 100mA. In standby mode, it's around 10mA. Refer to the WL1837MODGIMOCT datasheet for more detailed power consumption information.
