XCKU040-1FBVA676I - AMD

Description: XILINX - XCKU040-1FBVA676I - FPGA, KINTEX ULTRASCALE, FCBGA-676

Download XCKU040-1FBVA676I Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

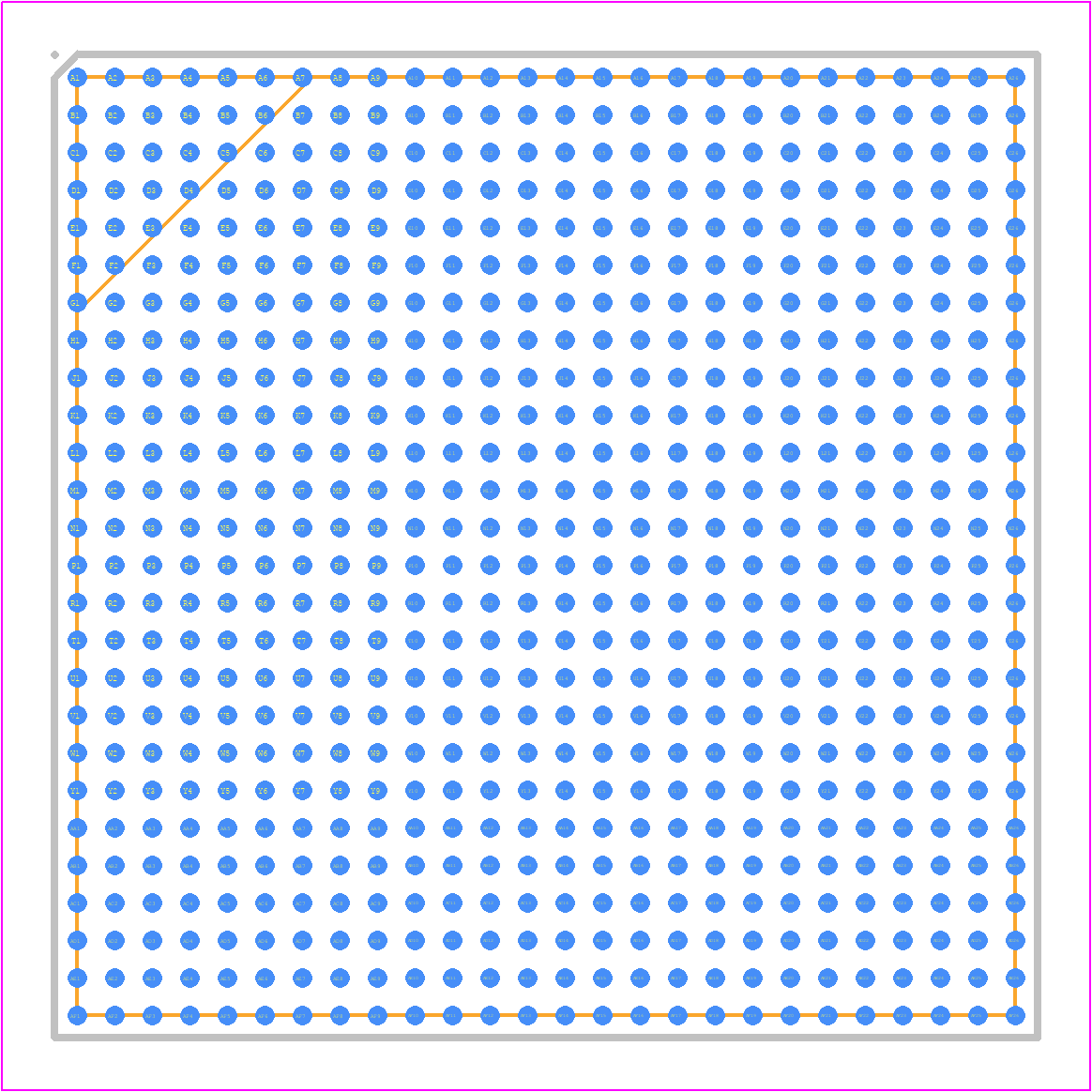

XCKU040-1FBVA676I - AMD PCB footprint - BGA - BGA - FBVA676
click to zoom
3D Models
XCKU040-1FBVA676I - AMD  - 3D model - BGA - FBVA676
click to zoom

XCKU040-1FBVA676I Details

  • Manufacturer Part Number:

    XCKU040-1FBVA676I

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-676

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.31.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    AMD

  • YTEOL:

    10

  • JESD-30 Code:

    S-PBGA-B676

  • JESD-609 Code:

    e1

  • Length:

    27 mm

  • Moisture Sensitivity Level:

    4

  • Number of CLBs:

    1920

  • Number of Inputs:

    520

  • Number of Logic Cells:

    530250

  • Number of Outputs:

    520

  • Number of Terminals:

    676

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    1920 CLBS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA676,26X26,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    250

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.71 mm

  • Supply Voltage-Max:

    0.979 V

  • Supply Voltage-Min:

    0.922 V

  • Supply Voltage-Nom:

    0.95 V

  • Surface Mount:

    YES

  • Technology:

    16 nm

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    27 mm

XCKU040-1FBVA676I Frequently Asked Questions (FAQs)

  • The maximum power consumption of the XCKU040-1FBVA676I is approximately 12W, depending on the operating frequency, voltage, and usage.
  • To optimize power consumption, use the Xilinx Power Estimator (XPE) tool, enable power gating, reduce clock frequencies, and use low-power modes when possible.
  • The maximum operating frequency of the XCKU040-1FBVA676I is 500 MHz, but this can vary depending on the specific design, voltage, and temperature.
  • To ensure signal integrity, use the Xilinx Vivado Design Suite to analyze and optimize signal routing, add termination resistors, and use differential signaling when possible.
  • The recommended PCB layout and stackup for the XCKU040-1FBVA676I involves using a 4-layer or 6-layer PCB, with a dedicated power plane, and following Xilinx's guidelines for signal routing and decoupling.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XCKU040-1FBVA676I Overview

Use the download button to access the XCKU040-1FBVA676I schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XCKU0, or try a keyword search, such as Field Programmable Gate Arrays
