XDS7142QDQCRQ1 - Texas Instruments

Description: Automotive 12-bit 140-kSPS 2-channel nanopower SAR ADC with 1.8-V operation

Download XDS7142QDQCRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

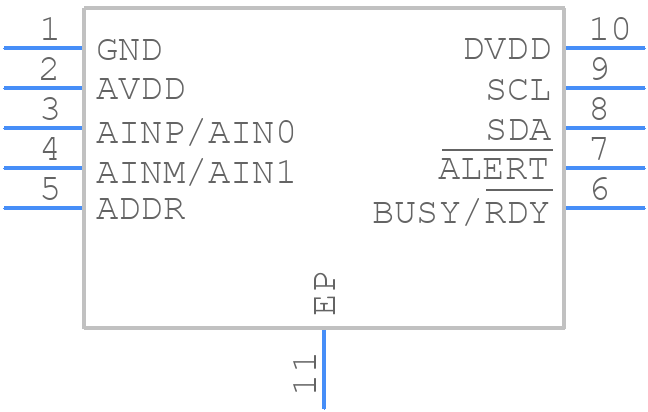

Symbol
XDS7142QDQCRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
XDS7142QDQCRQ1 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DQC0010A
click to zoom
3D Models
XDS7142QDQCRQ1 - Texas Instruments - 3D model - Small Outline No-lead - DQC0010A
click to zoom

XDS7142QDQCRQ1 Details

  • Manufacturer Part Number:

    XDS7142QDQCRQ1

  • Brand Name:

    Texas Instruments

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    WSON-10

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2018-11-21

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    3.6 V

  • Conversion Time-Max:

    1.8 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-N10

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Number of Analog In Channels:

    2

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Sample Rate:

    0.14 MHz

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

XDS7142QDQCRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout and thermal management guide in their application note SLUA623. It's essential to follow these guidelines to ensure proper heat dissipation and signal integrity.
  • The XDS7142QDQCRQ1 is a highly configurable device. You can use the TI's Clock Domain Wizard (CDW) software tool to generate the necessary configuration files for different interface modes. The CDW tool is available on the TI website.
  • The XDS7142QDQCRQ1 has specific power sequencing requirements to ensure proper operation. TI recommends following the power sequencing guidelines outlined in the datasheet and application notes to avoid damage to the device.
  • TI provides a comprehensive troubleshooting guide in their application note SLUA624. It covers common issues, debugging techniques, and tools to help identify and resolve problems with the XDS7142QDQCRQ1.
  • Yes, the XDS7142QDQCRQ1 is a high-speed device that requires careful EMI/EMC design considerations. TI recommends following the EMI/EMC guidelines outlined in the datasheet and application notes to minimize radiation and ensure compliance with regulatory standards.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XDS7142QDQCRQ1 Overview

Use the download button to access the XDS7142QDQCRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XDS71, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
