A good PCB layout for the XTR108EA/2K5 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power source. TI provides a recommended layout in the datasheet and application notes.
To ensure accurate voltage regulation, it's essential to follow the recommended input and output capacitor values, and to use a stable input voltage source. Additionally, the device's output voltage can be adjusted using the ADJ pin, and the output voltage tolerance can be improved by using a voltage reference IC.
The XTR108EA/2K5 has a thermal shutdown feature that activates when the junction temperature exceeds 150°C. To prevent overheating, ensure good airflow, use a heat sink if necessary, and follow the recommended PCB layout to minimize thermal resistance.
To protect the XTR108EA/2K5 from input voltage transients, use a TVS (transient voltage suppressor) diode or a voltage clamp circuit at the input. This will help prevent damage from voltage spikes or surges.
To minimize EMI, use a shielded enclosure, keep the input and output cables short, and use a common-mode choke or ferrite bead on the input and output lines. Additionally, follow good PCB layout practices, such as separating analog and digital grounds.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
XTR108EA/2K5 Overview

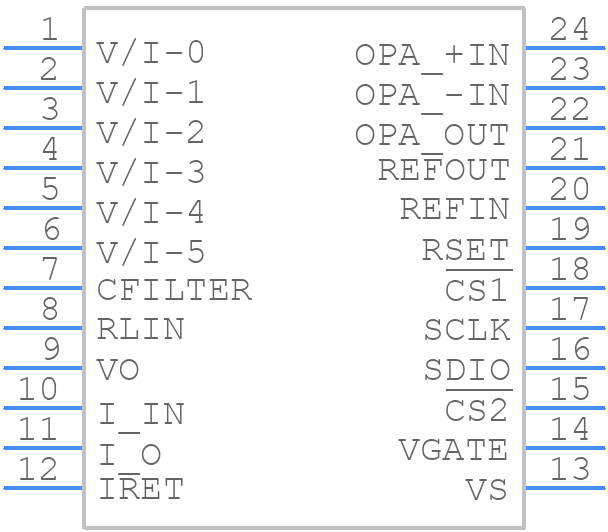

Use the download button to access the XTR108EA/2K5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XTR10,
or try a keyword search, such as Instrumentation Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
