XTR108EA - Texas Instruments

Description: 4-20mA, Two-Wire Transmitter 'Smart' Programmable with Signal Conditioning

Download XTR108EA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

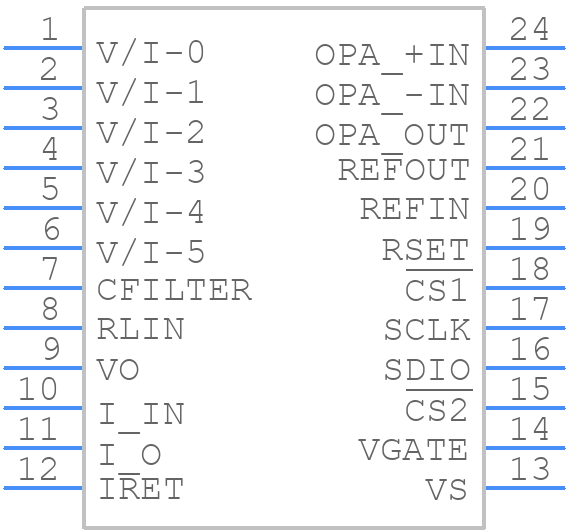

XTR108EA - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
XTR108EA - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBQ (R-PDSO-G24)
click to zoom
3D Models
XTR108EA - Texas Instruments - 3D model - Small Outline Packages - DBQ (R-PDSO-G24)
click to zoom

XTR108EA Details

  • Manufacturer Part Number:

    XTR108EA

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    INSTRUMENTATION AMPLIFIER

  • Input Offset Voltage-Max:

    50 µV

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    5.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Gain-Max:

    400

  • Voltage Gain-Min:

    6.25

  • Voltage Gain-Nom:

    12.5

  • Width:

    3.9 mm

XTR108EA Frequently Asked Questions (FAQs)

  • TI recommends a 4-layer PCB with a solid ground plane, and placing the XTR108EA close to the power source. Keep analog and digital signals separate, and use a ferrite bead or inductor in series with the input voltage to filter noise.
  • Use the TI Webench tool to configure the XTR108EA for your specific application. Webench provides a graphical interface to select the desired output voltage, input voltage range, and other parameters to generate a customized configuration.
  • The XTR108EA has a thermal shutdown feature that activates at 150°C. Ensure good airflow, use a heat sink if necessary, and follow TI's thermal design guidelines to prevent overheating. Monitor the junction temperature (TJ) and adjust the design accordingly.
  • Use an oscilloscope to monitor the output voltage and input voltage. Check for proper PCB layout, decoupling, and filtering. Verify the input voltage range and output voltage settings. Consult the datasheet and TI's application notes for troubleshooting guides.
  • Follow TI's EMI/EMC guidelines and application notes. Use a shielded enclosure, keep the XTR108EA away from antennas and high-frequency circuits, and ensure proper grounding and decoupling. Perform EMI/EMC testing to ensure compliance with regulatory standards such as CISPR and FCC.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

XTR108EA Overview

Use the download button to access the XTR108EA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like XTR10, or try a keyword search, such as Instrumentation Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
