Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The analog input traces should be short and direct, and the digital output traces should be routed away from the analog inputs. Additionally, decoupling capacitors should be placed close to the ADC's power pins.
To optimize the ADC3244IRGZT's performance, you should consider factors such as the input signal frequency, amplitude, and impedance. You should also adjust the ADC's gain and offset settings, and select the appropriate clock frequency and sampling rate for your application. Additionally, you may need to add external filters or amplifiers to condition the input signal.
The ADC3244IRGZT can handle input voltages up to 5.5V without damage. However, the recommended input voltage range is 0V to 4.096V to ensure accurate conversions. Exceeding the maximum input voltage can damage the ADC.
The ADC3244IRGZT has an internal calibration circuit that can be enabled through the CAL pin. You can also perform external calibration by applying a known input voltage and adjusting the ADC's gain and offset settings accordingly. Additionally, you can use the ADC's built-in self-test feature to verify its performance.
The typical power consumption of the ADC3244IRGZT is around 35mW at a clock frequency of 10MHz. To minimize power consumption, you can reduce the clock frequency, use the ADC's power-down mode, and optimize the digital output interface to reduce the power consumption of the surrounding circuitry.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADC3244IRGZT Overview

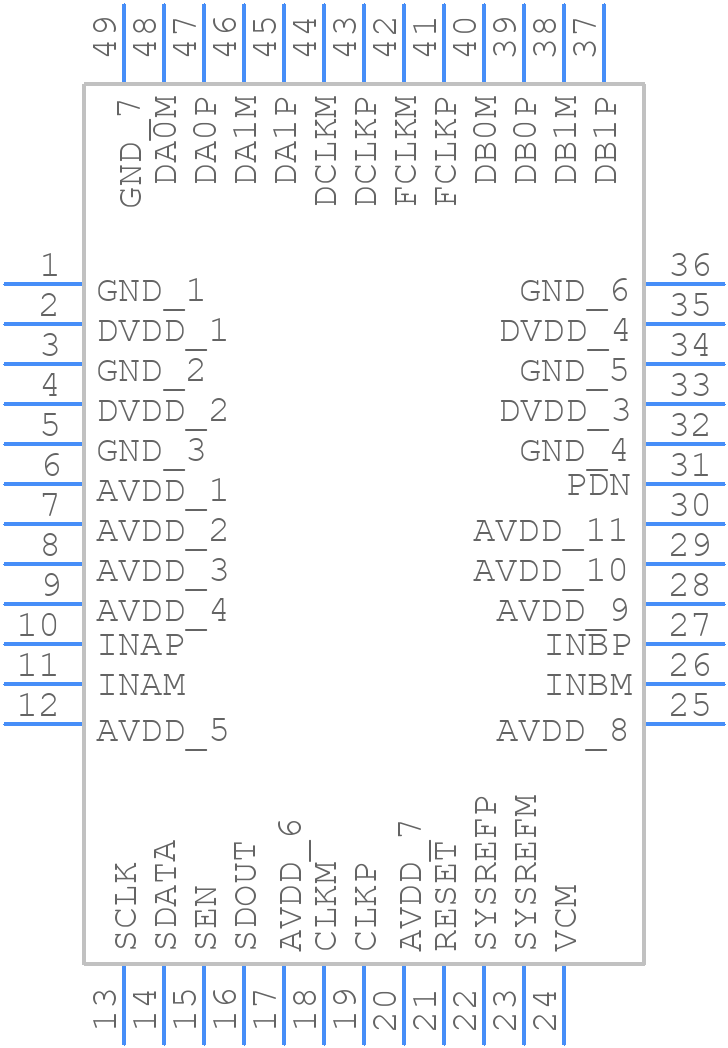

Use the download button to access the ADC3244IRGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC32,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
