Texas Instruments provides a layout guide in the datasheet, but it's also recommended to follow general high-impedance analog layout practices, such as keeping analog and digital traces separate, using a solid ground plane, and placing the device close to the analog signal sources.
The ADS112U04IPW has a built-in POR and BOR circuitry. To handle these, ensure that the power supply ramps up slowly (typically 1-2 ms) and that the voltage stays above the minimum operating voltage (1.65 V) during operation. Also, consider adding external reset circuitry or a voltage supervisor to ensure a clean power-up sequence.
The optimal clock frequency depends on the specific application and desired performance. However, Texas Instruments recommends a clock frequency between 1.25 MHz and 4 MHz for optimal noise performance. Higher clock frequencies can result in increased noise and decreased accuracy.
The ADS112U04IPW has an internal calibration mechanism, but it's recommended to perform an external calibration to achieve optimal performance. This can be done by applying a known input voltage and adjusting the device's offset and gain registers accordingly. Texas Instruments provides calibration procedures in the datasheet and application notes.
The ADS112U04IPW has a maximum input voltage range of ±VREF (typically ±2.5 V) for the differential input mode. However, the device can also operate in a pseudo-differential mode, which allows for a wider input voltage range. Consult the datasheet and application notes for more information on pseudo-differential mode operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS112U04IPW Overview

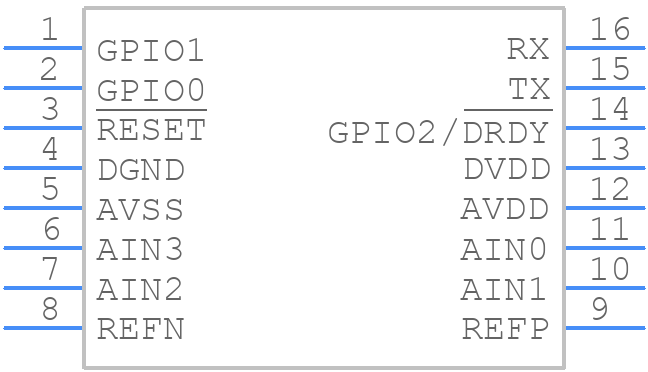

Use the download button to access the ADS112U04IPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS11,
or try a keyword search, such as Analog to Digital Converters
