Texas Instruments provides a layout guide in the datasheet, but it's recommended to follow a star-grounding approach, keeping analog and digital grounds separate, and placing the device close to the analog signal sources. Additionally, ensure that the device is placed on a solid ground plane to minimize noise and electromagnetic interference (EMI).
To handle the high impedance of the analog inputs, use a buffer amplifier or an op-amp with a high input impedance (>10 GΩ) to drive the input signal. This will help to minimize signal attenuation and ensure accurate measurements. Additionally, keep the input traces short and use a low-noise, low-capacitance PCB material to minimize signal degradation.
Use a combination of passive and active filtering techniques to filter out noise and interference. For example, use a low-pass filter (LPF) or a band-pass filter (BPF) to remove high-frequency noise, and an electromagnetic interference (EMI) filter to remove electromagnetic noise. Additionally, use shielding and grounding techniques to minimize radiated noise.
To ensure accurate temperature measurement, ensure that the device is properly calibrated, and the internal temperature sensor is not affected by self-heating or external thermal gradients. Use a thermocouple or a thermistor to calibrate the internal temperature sensor, and ensure that the device is operated within its specified temperature range.
The recommended power-up sequence is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the clock signal. This ensures that the device powers up correctly and minimizes the risk of latch-up or other power-up related issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS112U04IPWR Overview

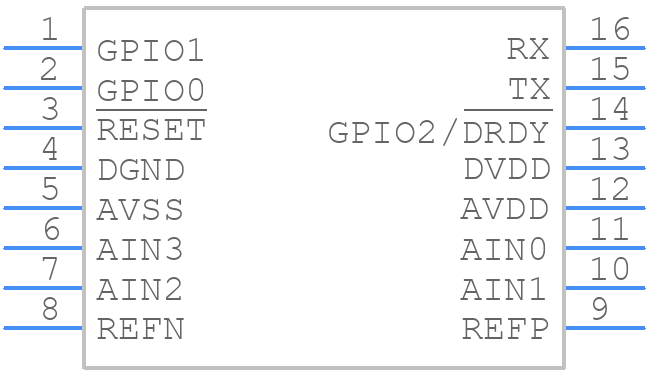

Use the download button to access the ADS112U04IPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS11,
or try a keyword search, such as Analog to Digital Converters
