Texas Instruments provides a recommended layout and placement guide in the ADS1209SPWR datasheet, which includes guidelines for component placement, routing, and thermal management. Additionally, the TI website has a PCB layout example and a thermal design guide that can be used as a reference.
To optimize the performance of the ADS1209SPWR, ensure that the analog and digital grounds are separated, use a low-noise power supply, and minimize digital noise coupling to the analog signals. Also, follow the recommended layout and placement guidelines, and use a good quality analog-to-digital converter (ADC) driver, if necessary.
The maximum sampling rate of the ADS1209SPWR is 15,000 samples per second (SPS) for a single channel, and 7,500 SPS for multiple channels. However, the actual sampling rate may be limited by the system's clock frequency, the ADC's conversion time, and the digital interface's data transfer rate.
The ADS1209SPWR has an internal calibration mechanism that can be initiated through the CAL pin. The calibration process involves shorting the CAL pin to the digital ground (DGND) for a minimum of 100 ns. The device will then perform a self-calibration and store the calibration data in its internal registers.
The power consumption of the ADS1209SPWR depends on the operating mode, sampling rate, and supply voltage. In normal operation, the device consumes around 15 mW at 3 V and 30 mW at 5 V. In power-down mode, the power consumption is reduced to around 1 μW.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1209SPWR Overview

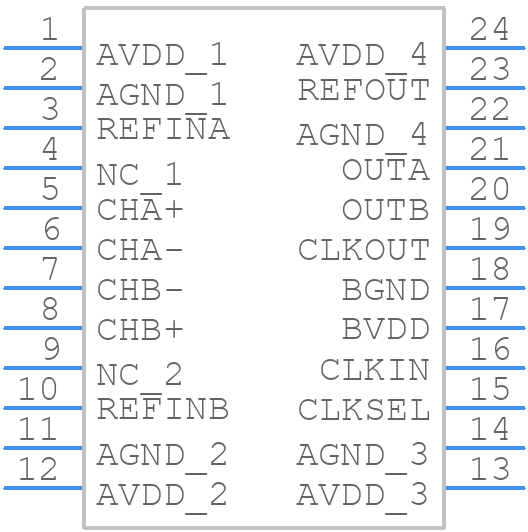

Use the download button to access the ADS1209SPWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
