The ADS1217IPFBT is a high-precision ADC, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and place the ADC close to the analog signal sources. Additionally, decoupling capacitors should be placed as close as possible to the ADC's power pins.
To optimize the ADS1217IPFBT's performance, it is essential to understand the application's requirements and adjust the ADC's settings accordingly. This includes selecting the appropriate gain, sampling rate, and filter settings. Additionally, ensuring a clean and stable power supply, minimizing noise and interference, and using proper signal conditioning can also improve the ADC's performance.
The recommended power-up sequence for the ADS1217IPFBT is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the clock signal. This sequence helps to ensure that the ADC's internal circuitry is properly initialized and reduces the risk of latch-up or other power-related issues.
The ADS1217IPFBT's digital output data is available in a 24-bit binary two's complement format. To handle this data, it is recommended to use a microcontroller or FPGA with a 24-bit or 32-bit data bus. The data can be processed and converted to a more suitable format, such as a floating-point number, using software or firmware.
The ADS1217IPFBT's latency is approximately 10.5 ms, which includes the conversion time and the output data latency. This latency can affect the system's performance, especially in real-time applications. To minimize the impact of latency, it is recommended to use a double-buffered approach, where one buffer is being filled while the other is being processed.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1217IPFBT Overview

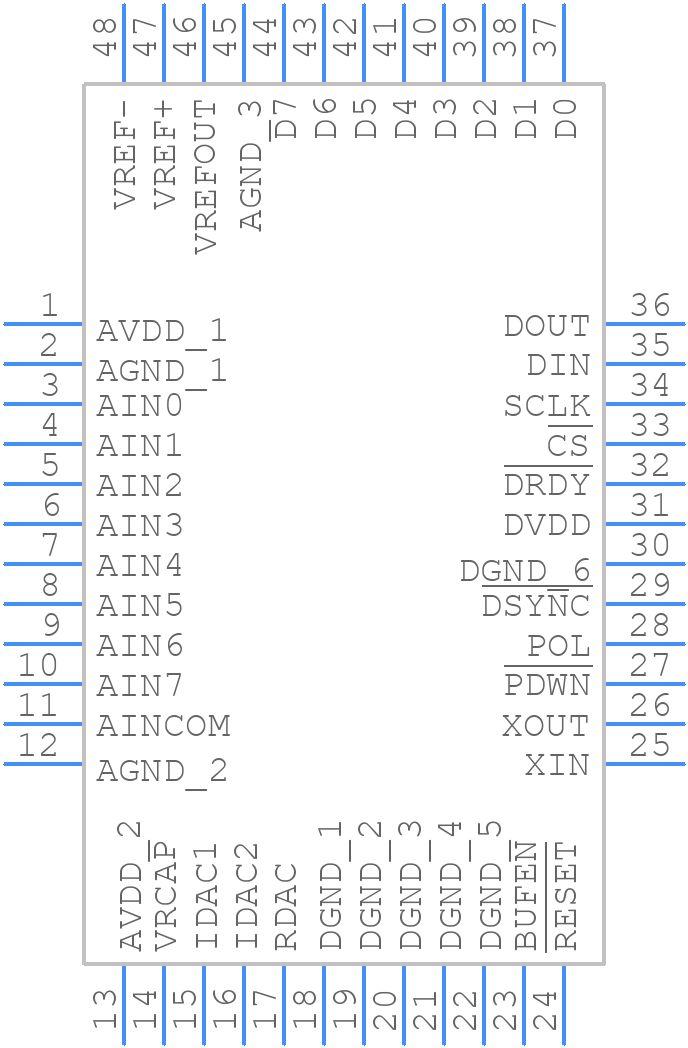

Use the download button to access the ADS1217IPFBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
