The ADS1231ID requires careful layout and placement to minimize noise and ensure accurate conversions. TI recommends placing the device close to the analog signal source, using a solid ground plane, and keeping analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
To optimize the ADS1231ID's performance, consider the following: choose the correct gain setting, adjust the PGA gain and offset, and optimize the clock frequency. Additionally, ensure proper filtering and shielding to minimize noise and interference.
The ADS1231ID's digital output data should be handled carefully to avoid data corruption. Use a first-in-first-out (FIFO) buffer to handle data, and consider using a dedicated DMA channel to transfer data to the microcontroller or processor.
To ensure accuracy and linearity, calibrate the ADS1231ID regularly, use a high-quality voltage reference, and maintain a stable power supply. Additionally, consider using a temperature sensor to compensate for temperature-related drift.
The ADS1231ID requires a clean and stable power supply. Use a low-noise, low-dropout regulator, and decouple the power pins with high-quality capacitors (e.g., 10uF and 100nF). Place decoupling capacitors close to the device's power pins.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1231ID Overview

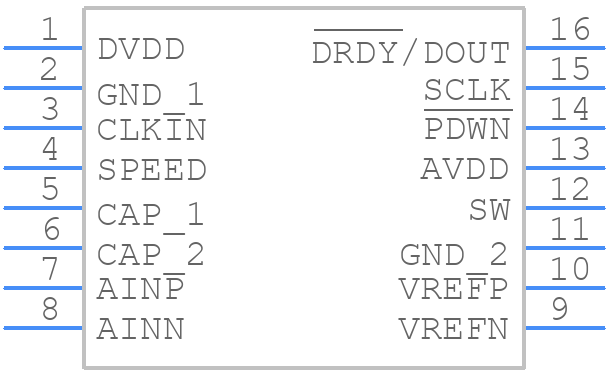

Use the download button to access the ADS1231ID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
