The ADS1231IDR requires careful layout and placement to minimize noise and ensure accurate conversions. TI recommends placing the device close to the analog signal source, using a solid ground plane, and keeping analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
To optimize the ADS1231IDR's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and optimize the analog front-end circuitry. Additionally, consider using the device's built-in calibration features and adjusting the PGA gain to optimize SNR and dynamic range.
The ADS1231IDR is specified to operate from -40°C to 125°C. However, high temperatures can affect the device's accuracy and noise performance. Ensure proper thermal management, and consider using thermal shielding or heat sinks to maintain a stable temperature. Additionally, consult the datasheet for temperature-related specifications and derating.
To ensure EMC, follow proper PCB design practices, such as using a solid ground plane, minimizing loop areas, and using shielding. Additionally, consider using EMI filters, ferrite beads, or common-mode chokes to reduce emissions and susceptibility. Consult the datasheet and relevant EMC standards for more information.
The ADS1231IDR requires a specific power sequencing to ensure proper operation. The device's digital supply (DVDD) should be powered up before the analog supply (AVDD). Additionally, ensure that the power supplies are stable and within the recommended voltage ranges before starting conversions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1231IDR Overview

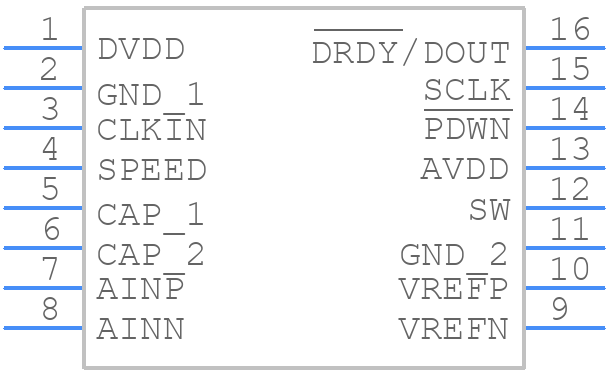

Use the download button to access the ADS1231IDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
