The ADS1232IPWG4 requires careful layout and placement to minimize noise and ensure accurate conversions. TI recommends placing the device close to the analog signal source, using a solid ground plane, and keeping analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
To optimize the ADS1232IPWG4's performance, consider the following: adjust the gain and offset settings to match your signal range, use the correct sampling rate and averaging settings, and ensure proper filtering and signal conditioning. Additionally, consult the datasheet and application notes for specific guidance on optimizing performance for your application.
The ADS1232IPWG4 is rated for operation up to 125°C. However, high temperatures can affect the device's accuracy and reliability. Ensure proper thermal management, and consider using thermal shielding or heat sinks if operating in high-temperature environments. Consult the datasheet for specific temperature-related specifications and guidelines.
To ensure EMC with the ADS1232IPWG4, follow proper PCB design and layout guidelines, use shielding and filtering as needed, and ensure that the device is properly grounded. Additionally, consider using electromagnetic shielding materials and following relevant EMC standards and regulations.
The ADS1232IPWG4 requires proper power sequencing to ensure reliable operation. Ensure that the analog power supply (AVDD) is powered up before the digital power supply (DVDD), and that the device is fully powered up before initiating conversions. Consult the datasheet for specific power sequencing guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1232IPWG4 Overview

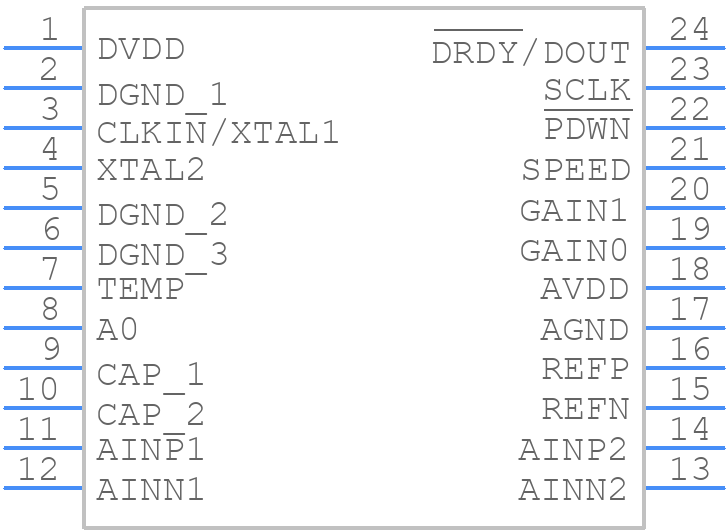

Use the download button to access the ADS1232IPWG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
