The ADS1232IPWRG4 requires careful layout and placement to ensure optimal performance. TI recommends placing the device close to the analog signal sources, using a solid ground plane, and keeping the analog and digital traces separate. Additionally, the device should be placed on a multi-layer PCB with a dedicated analog ground plane.
To optimize gain and offset calibration, TI recommends using the internal calibration feature of the ADS1232IPWRG4. This feature allows for automatic gain and offset calibration. Additionally, the device can be calibrated using external calibration signals. It's also important to ensure that the input signals are within the specified range and that the device is operated within the recommended temperature range.
The recommended power-up sequence for the ADS1232IPWRG4 is to first apply the analog power supply (AVDD) and then the digital power supply (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry. Additionally, the device should be powered up slowly to prevent voltage spikes and ensure reliable operation.
To handle EMI and EMC issues, TI recommends using proper shielding, grounding, and filtering techniques. The device should be placed in a shielded enclosure, and the PCB should be designed with EMI reduction in mind. Additionally, the device's digital outputs should be properly terminated, and the analog inputs should be filtered to reduce noise and interference.
TI recommends using a combination of oscilloscopes, logic analyzers, and debugging software to debug and troubleshoot the ADS1232IPWRG4. The device's digital outputs can be monitored using a logic analyzer, and the analog inputs can be monitored using an oscilloscope. Additionally, TI provides debugging tools and software to help identify and resolve issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1232IPWRG4 Overview

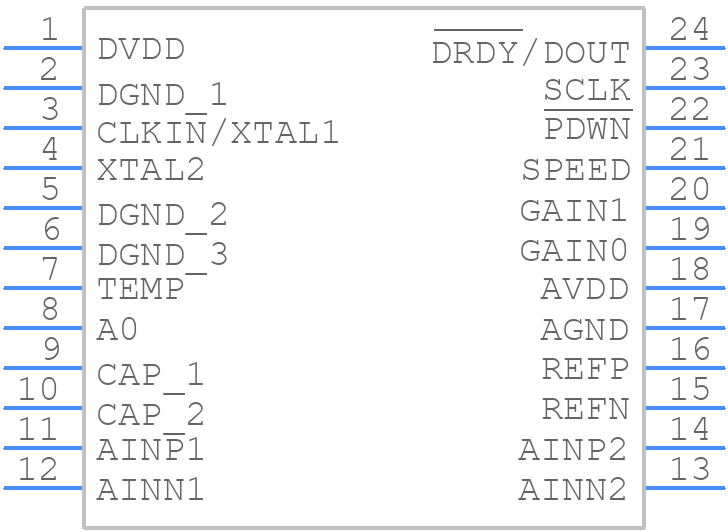

Use the download button to access the ADS1232IPWRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
