The ADS1240E requires careful PCB layout and placement to minimize noise and ensure accurate conversions. TI recommends placing the device near the analog signal sources, using a solid ground plane, and keeping analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
To optimize the ADS1240E's performance for low-noise applications, use a low-noise voltage reference, ensure a stable power supply, and minimize digital noise coupling. Additionally, use a high-impedance analog input, and consider using a buffer amplifier or a low-pass filter to reduce noise.
The recommended clock frequency for the ADS1240E is between 1.5 MHz and 4 MHz. However, the optimal clock frequency may vary depending on the specific application and noise requirements. It's recommended to consult the datasheet and application notes for more information.
The ADS1240E's digital output data is in two's complement format. To handle the data, use a microcontroller or FPGA to read the data and perform any necessary processing, such as scaling or averaging. Ensure that the receiving device can handle the data rate and format.
The ADS1240E's latency is approximately 12 clock cycles. This latency may affect applications that require real-time data acquisition or processing. To minimize the impact of latency, consider using a FIFO or buffer to store data, or use a faster clock frequency to reduce the latency.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1240E Overview

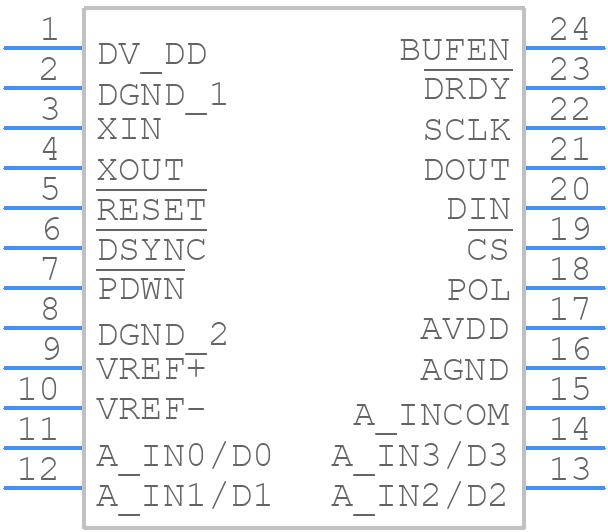

Use the download button to access the ADS1240E schematic symbol, PCB footprint, and 3D model.
