The ADS1242IPWTG4 is a high-precision ADC, and its performance is sensitive to PCB layout and component placement. TI recommends following a star-grounding scheme, keeping analog and digital traces separate, and placing decoupling capacitors close to the device. A 4-layer PCB with a solid ground plane is also recommended.
To optimize the ADS1242IPWTG4's performance, consider the following: choose the right gain setting, adjust the sampling rate, and select the appropriate clock source. Additionally, ensure that the input signal is properly filtered and buffered, and that the reference voltage is stable and accurate.
The ADS1242IPWTG4's performance is affected by temperature. The device's offset voltage, gain error, and noise floor all vary with temperature. TI provides temperature coefficients for these parameters in the datasheet, allowing designers to compensate for temperature effects in their application.
To ensure EMC with the ADS1242IPWTG4, follow proper PCB design and layout practices, such as using a solid ground plane, keeping analog and digital traces separate, and using shielding and filtering where necessary. Additionally, ensure that the device is properly bypassed and decoupled, and that the system's power supply is well-regulated.
Common pitfalls to avoid when designing with the ADS1242IPWTG4 include: inadequate decoupling, poor PCB layout, insufficient filtering, and incorrect gain setting. Additionally, designers should avoid overdriving the input, using an unstable reference voltage, and neglecting to consider temperature effects.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1242IPWTG4 Overview

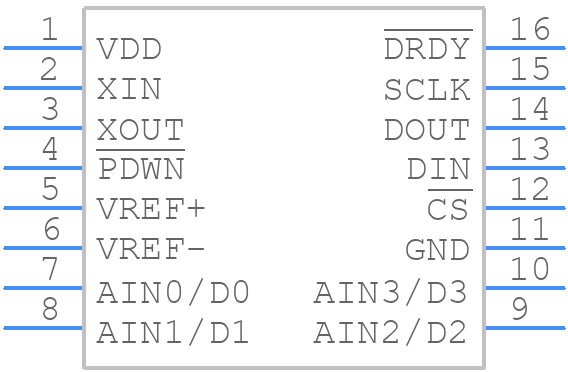

Use the download button to access the ADS1242IPWTG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
