ADS1243IPWRG4 - Texas Instruments

Description: Octal Channel Single ADC Delta-Sigma 15sps 24-bit Serial 20-Pin TSSOP T/R

Download ADS1243IPWRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

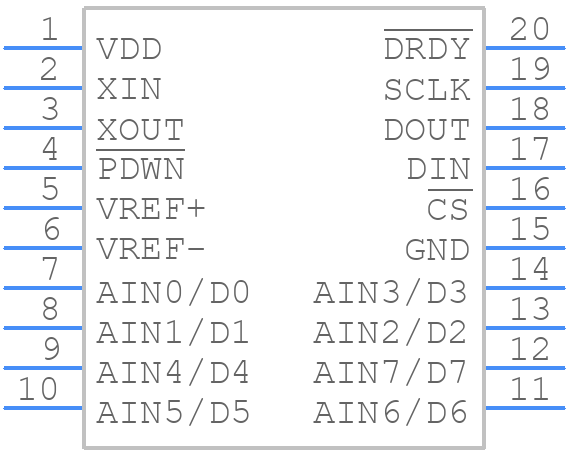

ADS1243IPWRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS1243IPWRG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G20)
click to zoom
3D Models
ADS1243IPWRG4 - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G20)
click to zoom

ADS1243IPWRG4 Details

  • Manufacturer Part Number:

    ADS1243IPWRG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.25 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.000015 MHz

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    1.325 mA

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADS1243IPWRG4 Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and placing the device close to the analog signal sources to minimize noise. Additionally, it's recommended to keep the analog and digital grounds separate and connect them at a single point.
  • To optimize performance in noisy environments, use a low-pass filter on the analog input, use a shielded cable for the analog input, and consider using a common-mode filter. Additionally, ensure that the device is properly grounded and decoupled.
  • The maximum sampling rate of the ADS1243IPWRG4 is 2000 samples per second (SPS) for a single channel, and 1000 SPS for multiple channels. However, the actual sampling rate may be limited by the system's clock frequency and the device's settling time.
  • The ADS1243IPWRG4 has an internal calibration mechanism that can be initiated through the CAL pin. The device can also be calibrated using an external calibration signal. It's recommended to perform calibration after power-up and after any changes to the system's operating conditions.
  • The power consumption of the ADS1243IPWRG4 is typically around 15mW. To reduce power consumption, consider using the device's power-down mode, reducing the clock frequency, and optimizing the system's power supply.
